DESCRIPTION

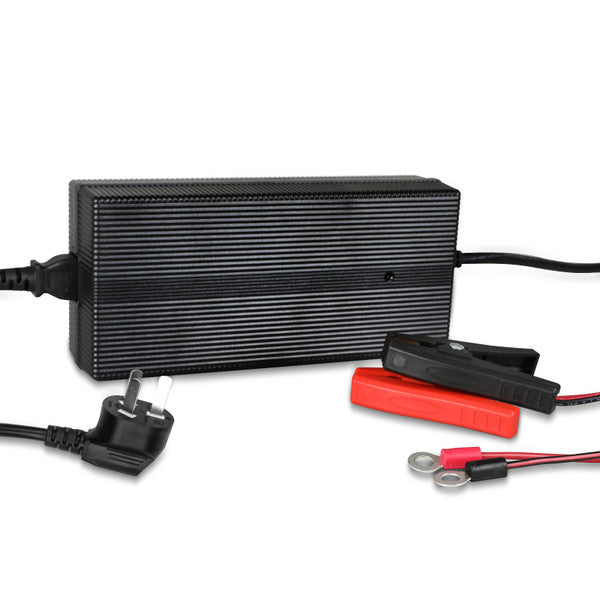

Renogy 24V 10A AC charger is designed for lithium batteries (LifePO4 Battery). The charger has a 3-stage intelligent charging design (CC/CV/trickle) to ensure it charges the lithium battery quickly and efficiently. This battery charger has 6-layer protection functions to realize comprehensive monitoring and protection of the battery. This charger is suitable for RVs, motorbikes, boats, and camper-van.
KEY FEATURES
- Born for Lithium Batteries
This battery charger is designed for lithium batteries. When the lithium battery triggers the low temperature/low voltage while charging, the BMS will turn on the protection, which means the lithium battery cannot be charged and needs to be activated. This charger provides a lithium battery activation function that quickly exits the protection mode and recharges. Along with CE and UKCA certification, it provides a safe and stable AC charging environment.
- High Adaptability
This battery charger has a wide AC input voltage range, 100-240 VAC 50/60Hz, which is compatible with various needs. The charger comes with two battery charging cables, one with alligator clips and the other with ring terminals. Rich wiring design to match different needs allows users to quickly establish the connection between the battery and the charger.
- Smart Charging
The charger has a 3-stage intelligent charging design: high current (cc), constant voltage (cv), trickle. It can accurately identify battery voltage and automatically switch charging mode and provide fast and efficient charging for lithium batteries; the charger's efficiency can reach up to 92%.
- Light & Build-in Safety Protection
The charger has six built-in protection functions to ensure charging safety, including short-circuit protection, over-current protection, over-temperature protection, over-voltage protection, under-voltage protection, and reverse polarity protection. The charger's indicator light can remind the wrong charging status and achieves all-round monitoring and protection.
- Easy to Use
Just plug and play operation to quickly establish the battery and charger connection. The product uses a patented plastic profile design, and the shell itself can achieve rapid heat dissipation. The fanless design brings users a zero-noise charging experience and reduces concerns about the installation angle and space of the product.
PACKAGE INCLUDES
|
10A AC-to-DC LFP Portable Battery Charger
1 x
|
AC Charger Power Adapter Cable
1 x
|
|
Ring Terminal Cable
1 x
|
Alligator Clips Cable
1 x
|
|
User Manual
1 x
|
Blade Fuse
1 x
|
SPECIFICATION
| Model | RBC10A2P |
| Input Voltage | 100-240 VAC 50/60 Hz |
| Input Amps (Max) | 5A |
| Output Voltage | 28.8 VDC |
| Output Amps (Max) | 10A |
| Battery compatibility | LiFePO4 Battery |
| Power Consumption | 290 W |
| Efficiency | 91%@ 110VAC ,93%@230 VAC |
| Operating temperature range | -29° to 45.5° / ‘-20.2°F to 113.9°F |
| Storage temperature range | -40° to 85° /'-40°F to 185°F |
| Self-Consumption | 50 mA |
| Enclosure Rating | IP20 |
| Humidity | 90% - 95% |
| Electronic Protections | Input Circuit/Short Circuit/Over voltage/Under voltage/Over temperature/Battery reverse connection |
| Cable | 14 AWG |
| Dimensions (L x W x D) | 9.17 x 4.25 x 2.52in / 233 x 108 x64mm |
| Weight | 1.7kg /3 lb |
| RING TERMINAL CABLE | |
|---|---|
| AWG | 600 ± 60 mm 14AWG / 1.96 ± 0.19 ft 14AWG |
| ALLIGATOR CLIPS CABLE | |
| AWG | 600 ± 60 mm 14AWG / 1.96 ± 0.19 ft 14AWG |
| AC CHARGER POWER ADAPTER CABLE | |
| AWG | 1200mm 18AWG / 3.93 ft 18AWG |
| BLADE FUSE | |
| Current Rating | 15A |
| Certifications： | |
| CE and RoHS compliant | CE, UKCA |
| FCC Class B Part 15 Compliant | No |
WARRANTY INFORMATION
| Accessories | 2-year material warranty |
