DESCRIPTION

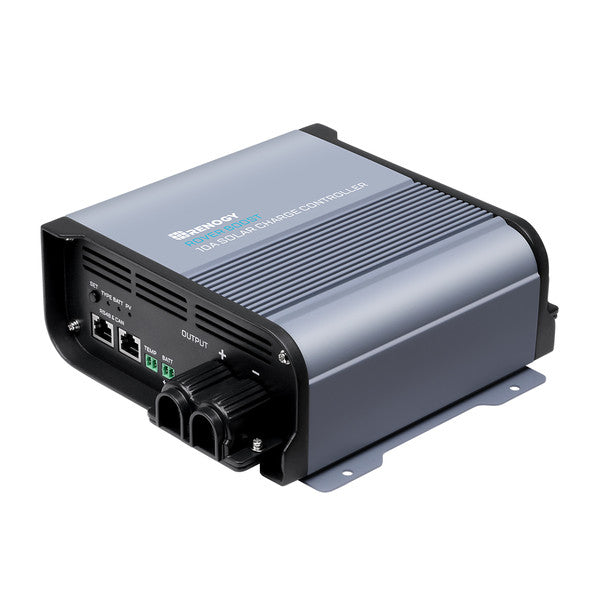

The 10A Rover Boost charge controller is a unique solution that allows you to charge 36V or 48V battery banks with 12V or 24V low voltage solar panels—specially designed for golf carts and electric vehicles. Increase your driving mile range and battery life using the power of solar and the Rover Boost.
Engineered to boost the panel's voltage while maintaining high-speed MPPT Technology Tracking, the Rover Boost is one of the industry's most powerful controllers perfectly suitable for limited spaces. With minimal configuration needed, the Rover Boost is preset to charge lead-acid and lithium batteries and supports the latest Renogy Bluetooth monitor giving you the option for remote monitoring and setting adjustments via smartphone.
KEY FEATURES
- Boost Charging
Boosts the voltage of 12V or 24V solar panels to charge 36V or 48V batteries
- Wide Range Applications
Increasing driving distance includes: electric vehicles, golf carts, scooters, trikes, and more
- 99% MPPT Charging Efficiency
Advanced MPPT Technology with minimum 99% tracking efficiency and 90% charge conversion efficiency for 4-stage battery charging (Bulk, Boost, Float, and Equalization) with charging
- 4 Preset Battery Charge
AGM/Sealed, Gel, Flooded, and Lithium. User mode also available for customizing charging
- Multiple Electronic Protections
Protect your battery, controller, and solar—including over-charge protection, reverse polarity protection, and more!
- Bluetooth monitoring
Add a Renogy Bluetooth Module (sold separately) and download the Renogy DC Home App for remote monitoring and customization.
PACKAGE INCLUDES
|
36V/48V Rover Boost 10A MPPT Solar Charge Controller
1 x
|
SPECIFICATION
| 36V/48V ROVER BOOST 10A MPPT SOLAR CHARGE CONTROLLER | |
|---|---|
| Rated System Voltage | 36V / 48V, Auto Recognition (Non-Lithium) |
| Rated Charge Current | 10A |
| Battery Operating Range | 30 ~ 65 VDC |
| Battery Types | AGM/Sealed, GEL, FLOODED, LFP, USER* |
| Rated Max Charge Power | PV Input Power: 500W/36V; 650W/48V Charging Power: 450W/36V; 600W/48V |
| Max Input Current (short-circuit, Isc) | 35A |
| Power Limiting Protection | Up to 600W/36V; 800W/48V |
| Solar Input Voltage Range (VOC) | 15 ~ 25VDC / 36V 15 ~ 40VDC / 48V |
| MPPT Voltage Range | 15 ~ 25VDC / 36V 15 ~ 40VDC / 48V |
| MPPT Tracking Efficiency | ≥ 99% |
| MPPT Charge Conversion Efficiency | ≥ 90% |
| Idle Consumption | ≤ 2W |
| Operating Temperature Range | -31°F ~ 149°F / -35℃ ~ + 65℃ |
| Storage Temperature Range | -40°F ~ 176°F / -40℃ ~ + 80℃ |
| Temperature Compensation |
-3mV / ℃ / 2V (Non-Lithium) 0mV / ℃ / 2V; no compensation (Lithium) |
| Grounding Type | Common Negative Lug (M3) |
| Enclosure Rating | IP20 |
| Humidity | 0-95% RH |
| Electronic Protections | Battery overcharging, Battery over discharge, Battery reverse polarity protection, PV reverse polarity, PV Reverse flow, PV short-circuit protection, Controller internal over-temperature protection, Charging over-current protection |
| Communication | RS485 / CAN bus signal |
| Dimensions (L x W x D) | 8.8 x 7.6 x 2.9 inch / 224 x 192 x 74.5mm |
| Weight | 2.65 lbs / 1.2 Kg |
| Terminal Range | 16 ~ 2 AWG |
| Terminal Size | M6-12x1 |
| Certifications： | |
| CE and RoHS compliant | Yes |
| FCC Class B Part 15 Compliant | Yes |
WARRANTY INFORMATION
| Accessories | 2 Year |
