48V Victron Multi RS 6kva Inverter Charger with Pylontech Batteries

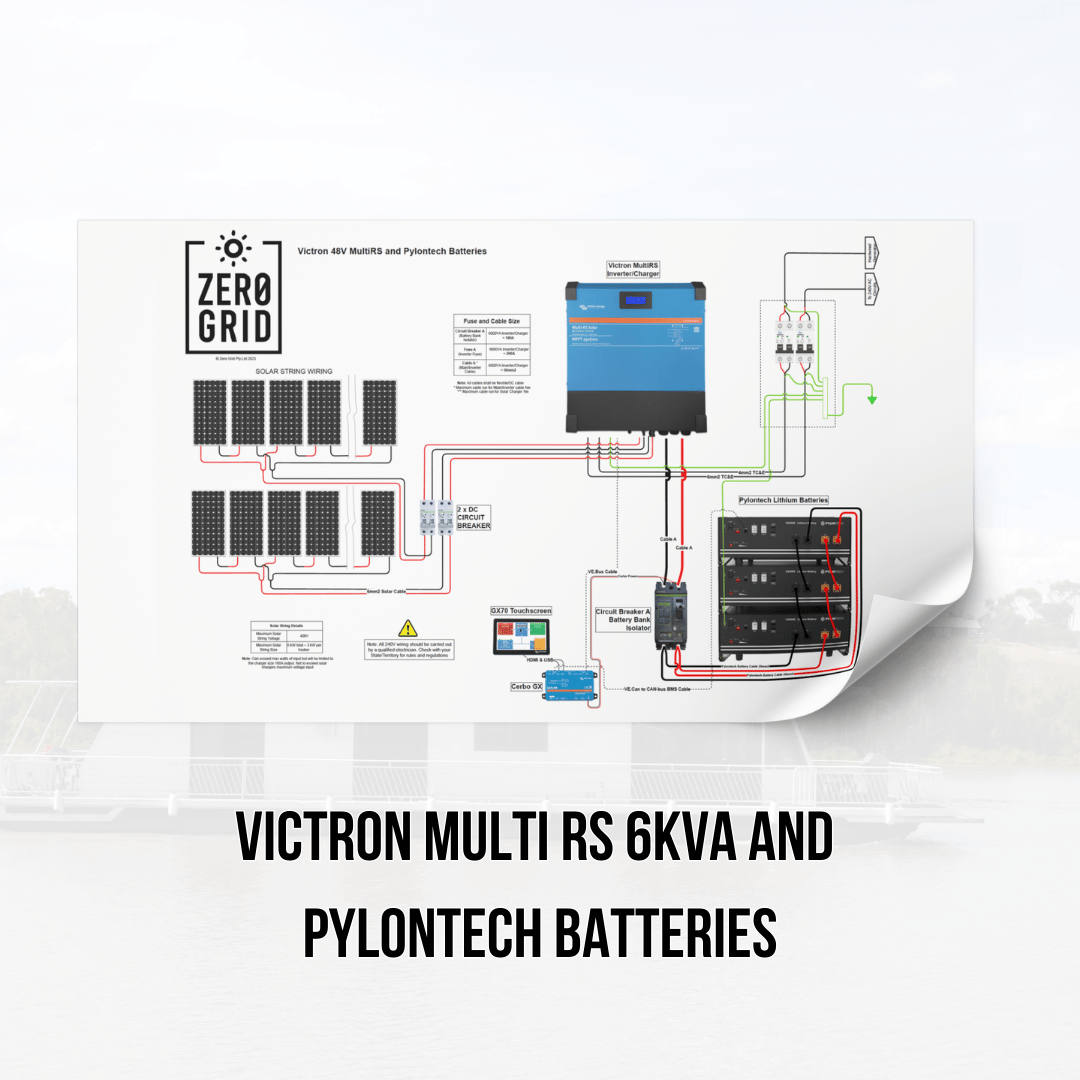

OFF GRID WIRING DIAGRAM TO OFF GRID HOME

This kits includes all the details on how to wire together with the correct cable size/fuses etc sent straight away to you to download as a PDF.

Components used in this diagram

• Victron 48V Multi RS 6KVA Inverter / Charger

• Victron SmartSolar 150/60 or 150/100
• US5000B Pylontech Lithium Batteries
• Cerbo GX

• GX70 7" Touchscreen
• NoARK DC Circuit Breaker
• Solar DC circuit breaker
• Battery Switch ON/OFF

If you need a hand to work out what drawing will suit your application best feel free to book a call with our in house Electrician, Landon by clicking here

Global Availability

Our off-grid wiring diagrams are applicable worldwide, meaning they can assist you in achieving your off-grid objectives regardless of your location.
