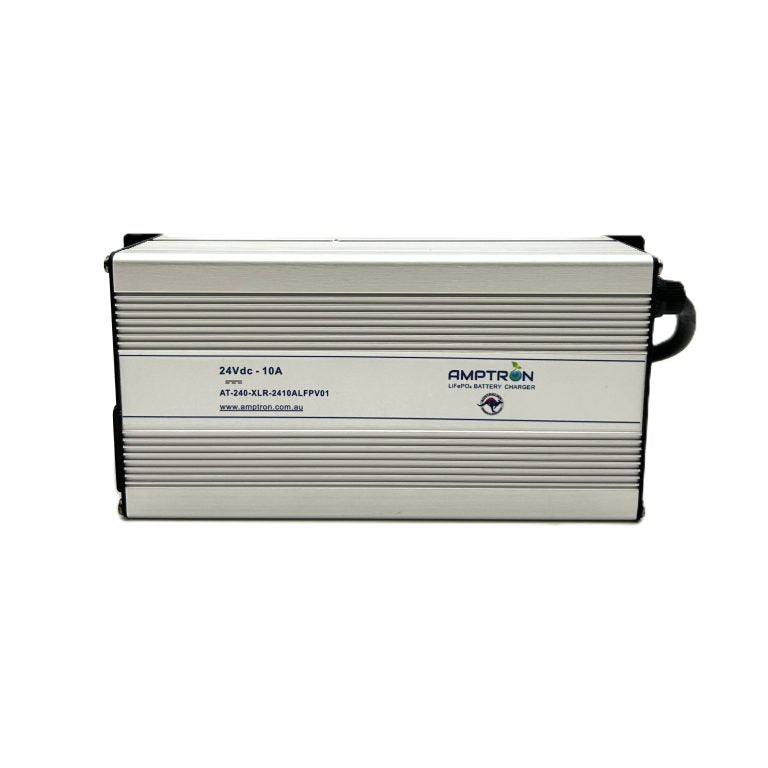

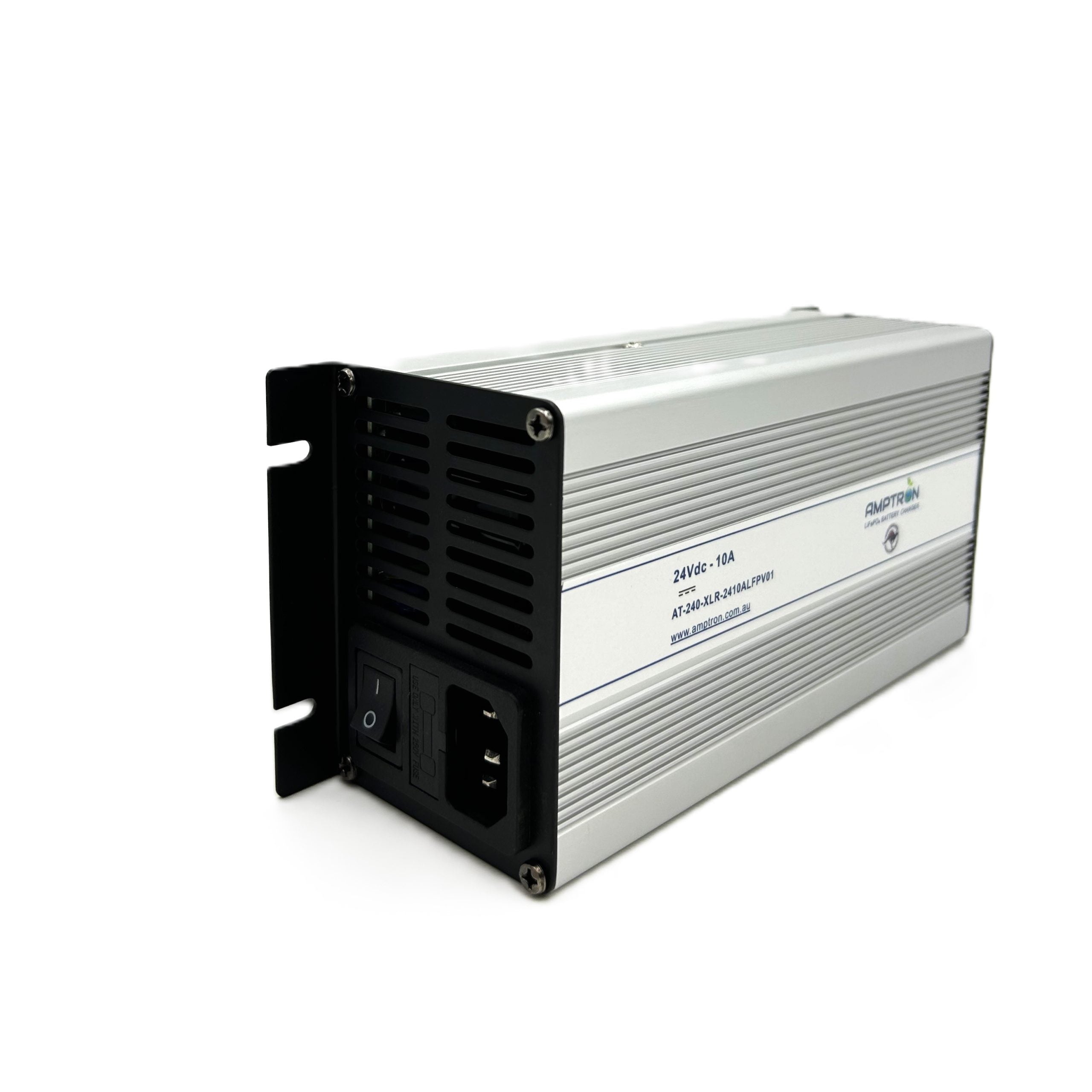

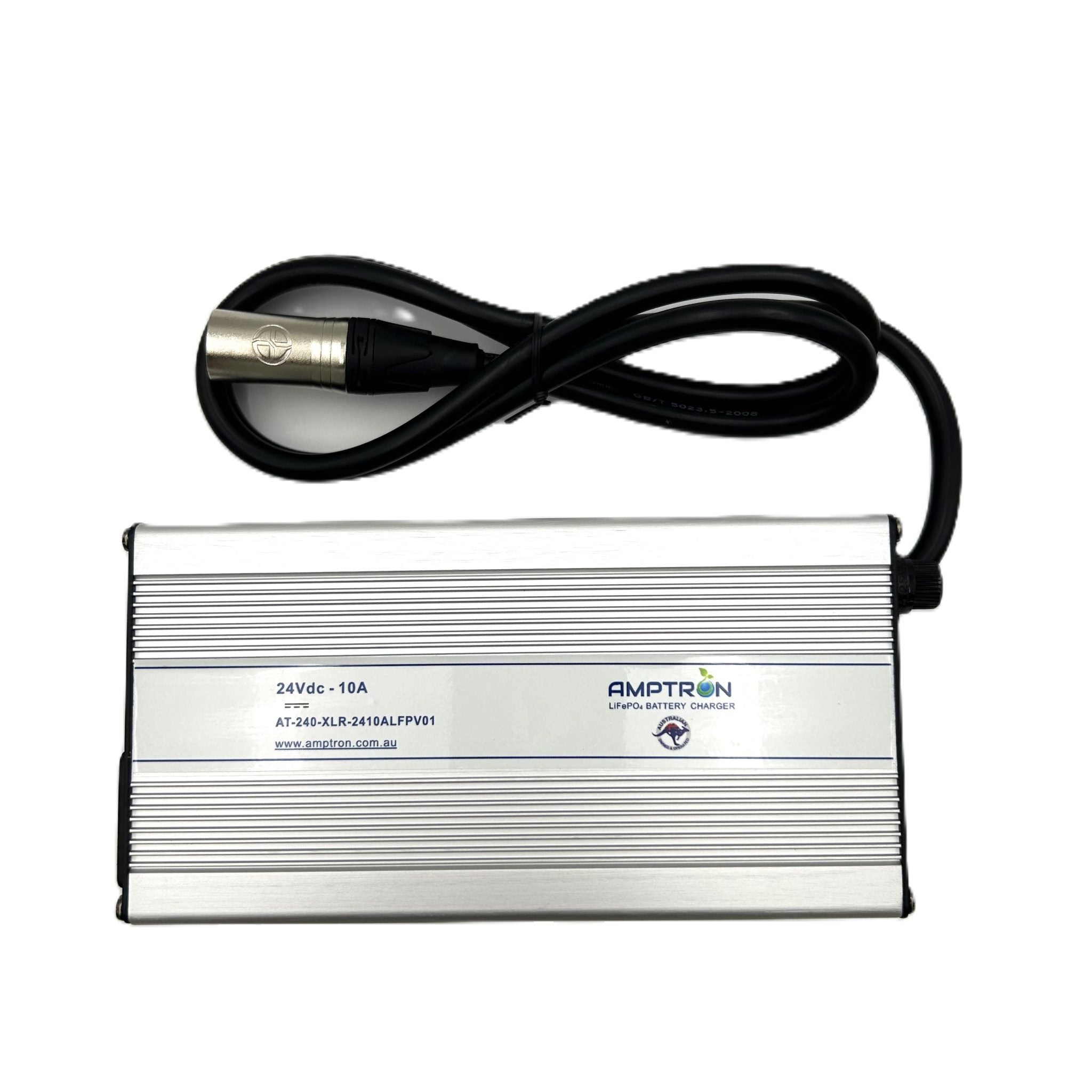

Battery Charger | Amptron | AC-DC 24V 10A Lithium LiFePO4 Battery Charger C/W XLR round Din Plug
$215.00
or 4 interest-free payments of
$53.75
with
SKU: AT-240-XLR-2410ALFPV01
Description
AMPTRON® Lithium Iron Phosphate (LiFePO4) battery chargers are state-of-the-art battery chargers with a charging profile specifically designed to charge and maintain Lithium Iron Phosphate (LiFePO4) batteries, and can safely achieve a 100% State of Charge.
The 24V 10A model charger operates from mains AC 200-264V as input, supplying up to 10A charging output suitable for nominal 24V LiFePO4 battery banks. The charger’s built-in protection technology provides protection against Over Voltage and Over Current output, Short Circuit and Reverse Polarity making it very safe to use. This model has a XLR round din style plug for quick connection to your appliance.
Specifications
|
Item
|
Specification
|
Description/Remark
|
|
Model
|
AT-240-XLR-2410ALFPV01
|
AC/DC 24V 10A LiFePO4 Battery Charger C/W XLR Plug
|
|
Input Voltage
|
min 200Vac to max 264Vac
|
|
|
Input Power
|
Max 356.3W
|
|
|
Constant charge voltage
|
Vdc min 29.0V to max 29.4V
|
|
|
Constant charge current
|
Min 9.7A to max 10.3A
|
|
|
Charge complete current
|
Vdc min 0.6A to max 1.0A
|
|
|
Ripple voltage
|
250mV
|
|
|
Efficiency
|
85%
|
At full load
|
|
Product Dimensions
|
L-170mm x W-90mm x H-63mm
|
|
|
Weight
|
1Kg
|
Please see more details in the 'Data Sheets' tab.
Delivery
We don't hold the stock on hand but have a trusted supplier who will send this direct from their nearest warehouse to ensure you receive it as soon as possible.
Warranty
AC-DC 24V 10A Lithium LiFePO4 Battery Charger C/W XLR round Din Plug Warranty Sheet
Data Sheets
AC-DC 24V 10A Lithium LiFePO4 Battery Charger C/W XLR round Din Plug Specifications
