DESCRIPTION

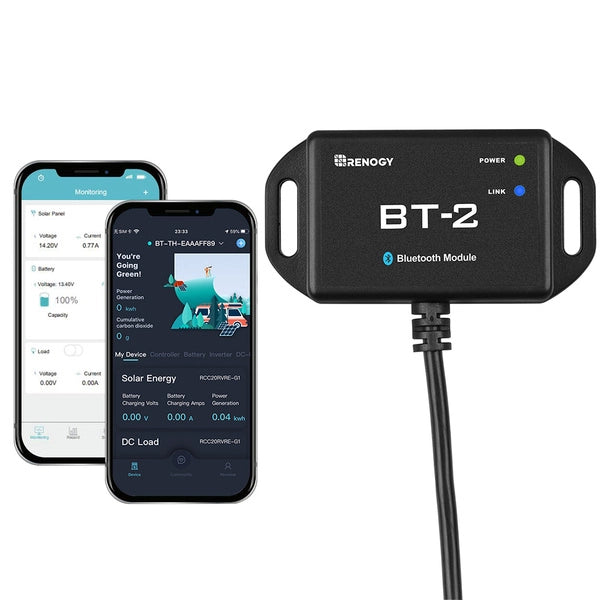

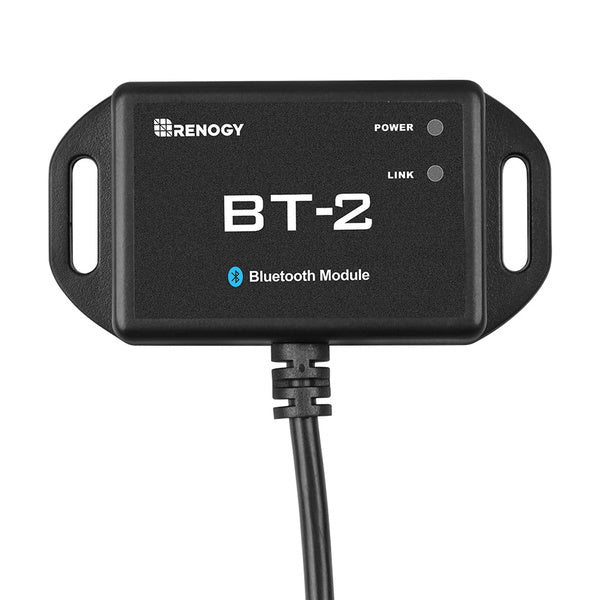

The Renogy BT-2 is the new generation Bluetooth module for select Renogy solar charge controllers, DC-DC battery chargers, and smart lithium batteries. Powered by its RJ45 communication port, the BT-2 provides wireless monitoring of the system data and allows users to change parameters through the Renogy DC Home smartphone App.
The Renogy DC Home App can help make your off-grid power system smarter by giving you access to configure, monitor, update, and diagnose your Renogy products from the convenience of your smartphone or tablet.
Connect the BT-2 to the component's RJ45 communication port to wirelessly check and adjust your system's parameters through the DC Home App (available in both the App Store and Google Play).
KEY FEATURES
-

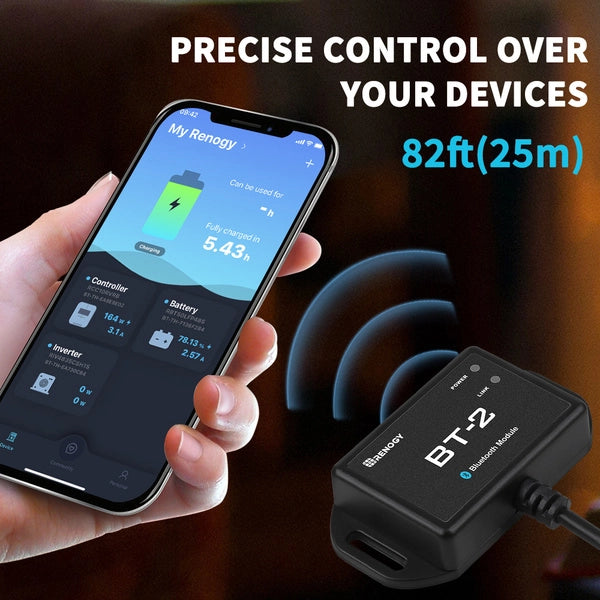

Precise Control Over Your Devices

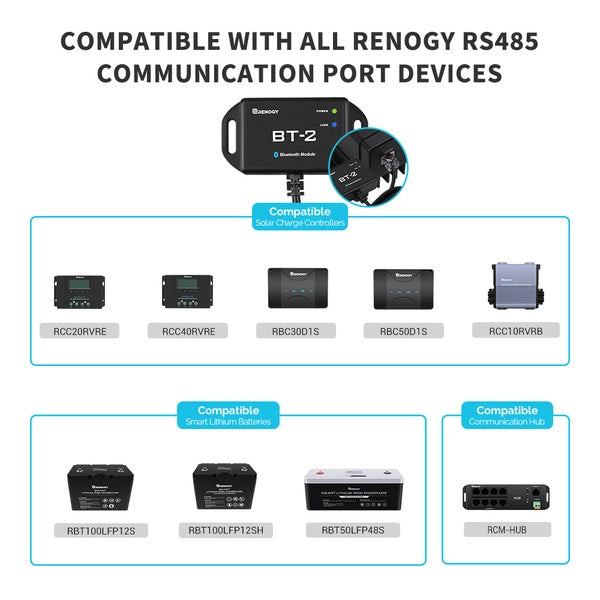

Compatible with all Renogy RS485 communication port products includes the Rover Elite MPPT Solar Charge Controller, Smart Lithium Batteries, and Dual DC-DC MPPT Battery Charger. -

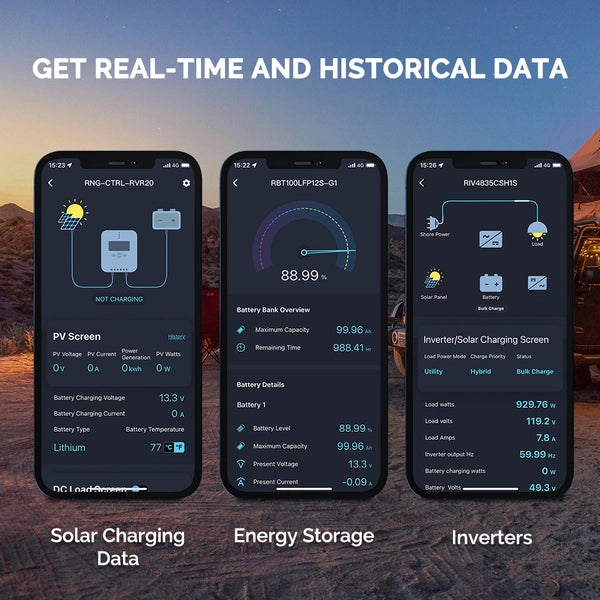

Real-time Insight
Get real-time and historical data via Bluetooth Module and Renogy DC Home App. Bluetooth 4.2 and BLE technology provides fast and uninterrupted communication. -
User-friendly
Easily connect the Bluetooth Module to the RS485 communication port, and follow the App instructions. The Bluetooth Module is powered by solar energy, and the ultra-low-power dedicated chip will allow signal range up to 82ft.
DOWNLOAD LINKS
PACKAGE INCLUDES
|
BT-2 Bluetooth module
1 x
|
SPECIFICATION
| SPECIFICATIONS | |
|---|---|
| Communication Protocol: RS485 | Port Type: RJ45 |
| Input Voltage: 5V or 12V | Protection Grade: IP54 |
| Standby Power Consumption: 0.04W | Operating Power Consumption: 0.05W |
| Communication Range: ≤82ft | Serial Baud Rate: Fixed Baud Rate 9600bps |
| Cable Length: 5.00 m (16.4 ft) | Dimensions: 2.65 X 1.38 X 0.55 in (67.3 X 35 X 14 mm) |
| Installation Dimensions: 67.3 φ3.5mm（2.66 φ 0.14in） | Operation Temperature: -4°F to 185°F (-20℃~85℃) |
| Weight: 130g (4.58oz) |
WARRANTY INFORMATION
| Material Warranty | 1-year |
CERTIFICATION
| FCC Class B Part 15 Compliant | Yes |
