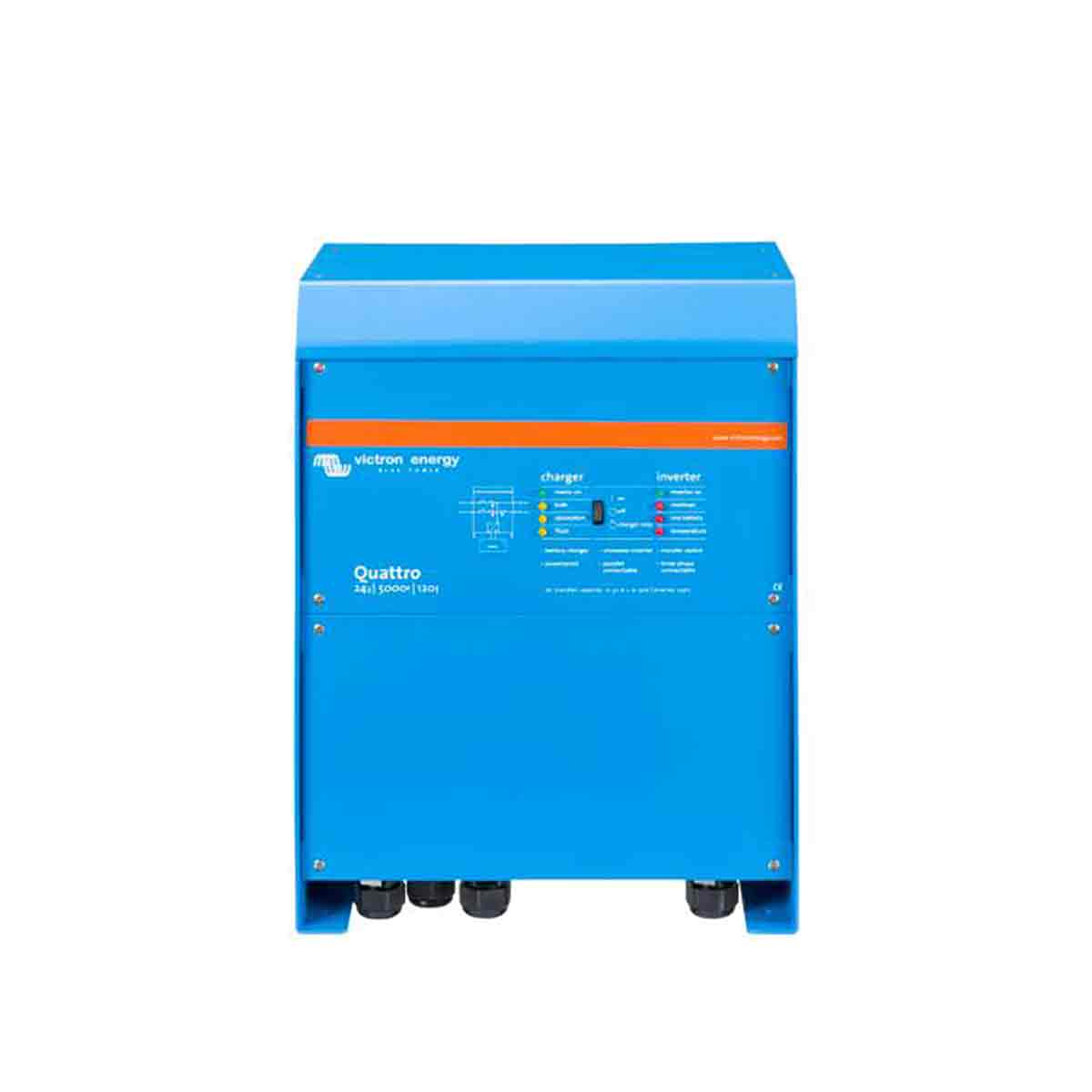

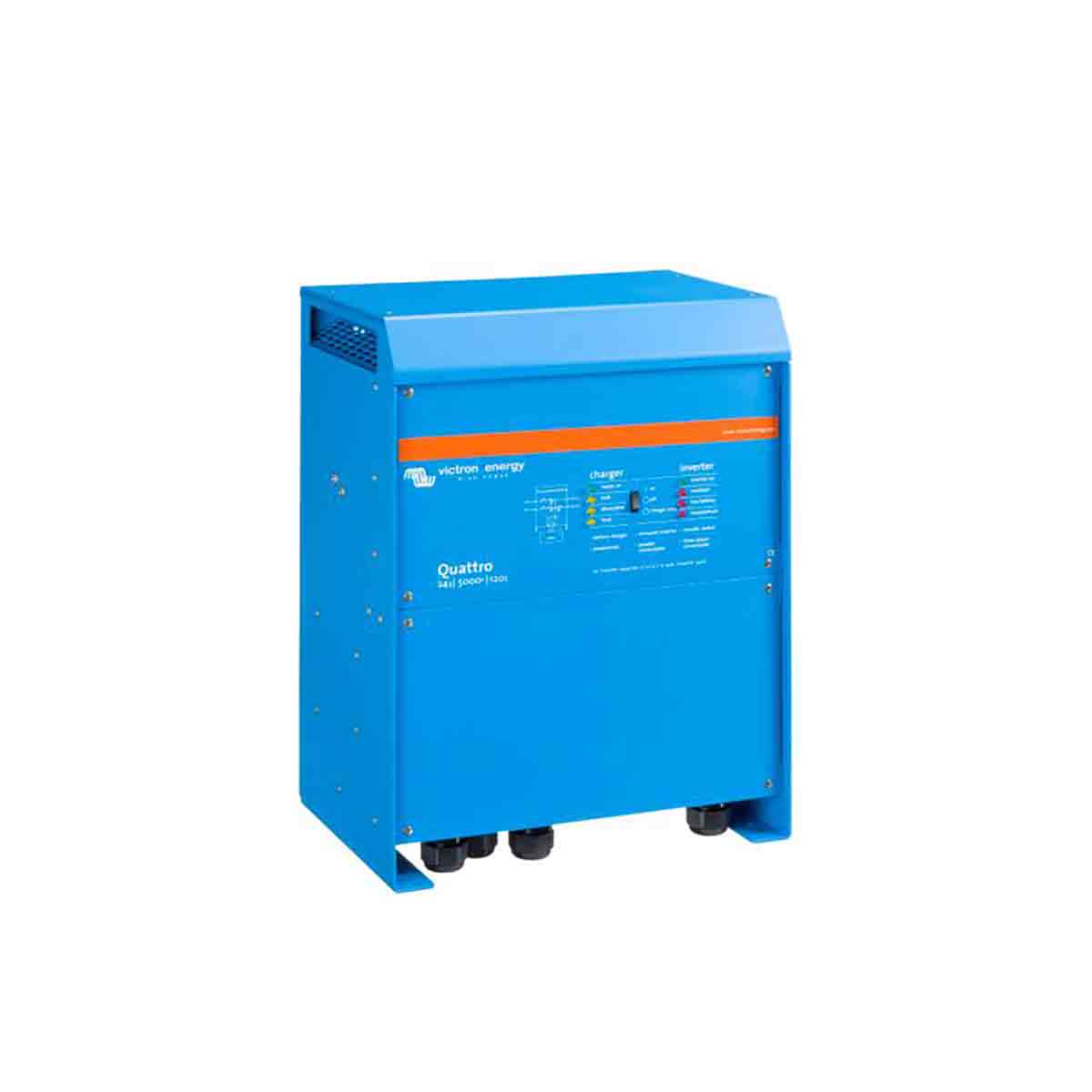

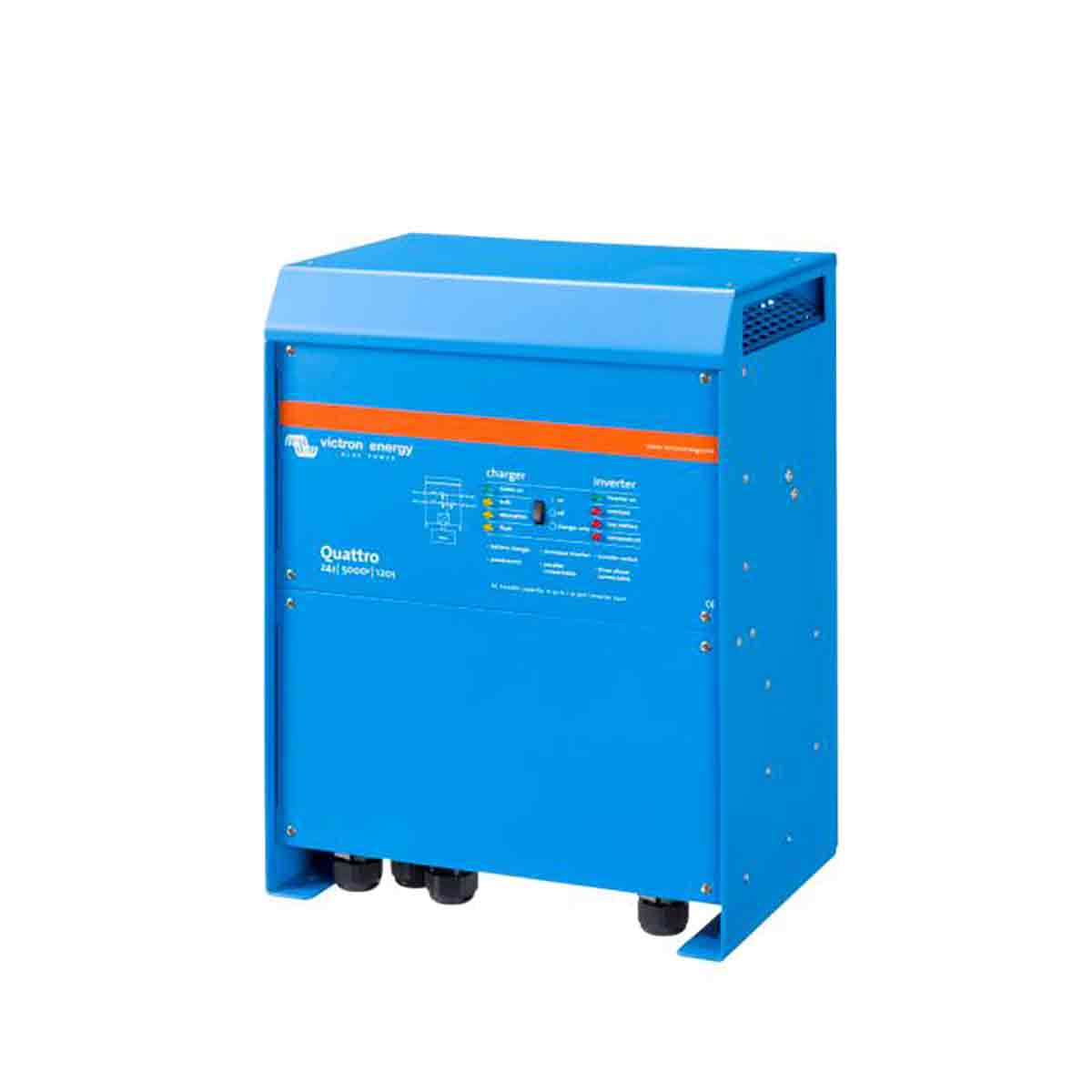

Inverter/Charger | Victron | Quattro 24V / 5000VA / 120-100 / 100
$4,580.00
SKU: QUA245021010
Description
Victron Quattro 230-volt AC, 24-volt 5000-VA inverter charger with 120-amp battery charging and 100-amp AC transfer capability compatible with all batteries including Lithium.
Similar to the MultiPlus, the Quattro is also a combined inverter and charger. Additionally it can accept two AC inputs and automatically connect to the active source. Its many features include a true sine wave inverter, adaptive charging, hybrid PowerAssist technology plus multiple system integration features such as three or split phase operation and parallel operation.
Two AC Inputs & two AC Outputs
The Quattro can be connected to two independent AC sources, for example shore-side power and a generator, or two generators. The Quattro will automatically connect to the active source. The main output has no-break functionality. In the event of a grid failure, or shore or generator power being disconnected, the Quattro takes over the supply to the connected loads. This happens so fast (less than 20 milliseconds) that computers and other electronic equipment will continue to operate without disruption. The second output is live only when AC is available on one of the inputs of the Quattro. Loads that should not discharge the battery, such as air-conditioning or a water heater can be connected to this output.
Unique PowerAssist feature
The Quattro will prevent overload of a limited AC source, such as a generator or shore power connection. First, battery charging will automatically be reduced when otherwise an overload would occur. The second level will boost the output of a generator or shore side supply with power taken from the battery.
Virtually unlimited power thanks to parallel operation
Up to 6 Quattros can operate in parallel to achieve higher power output. Three phase or split phase operation is also possible. Please check our datasheets to see which models have paralleling, three phase and split phase capabilities.
Remote Monitoring and Control
When coupled with a GX device (e.g. Cerbo GX) you can monitor and control your Quattro and system or systems' locally (LAN) or remotely via the internet from anywhere in the world, using the free VRM app and free VRM portal website. Access can be from a phone, tablet, laptop or PC for multiple operating systems. There is no end to the level of control, from adjusting your Quattro to auto starting a backupgenerator and more…
Specifications
| Continuous Power (Watts) | 4000W |
| Peak Power (Watts) | 10000W |
| AC Output (Volts) | 230V ±2% |
| DC Input Range (Volts) |
19V – 33V |
| Output Current Rating (Amps) | 220.0A |
| Operating Temperature Range | -40°C to 65°C |
| AC Input Range (Volts) | 187-265V / 45-65Hz |
| Inverter Output Efficiency | ~94% |
| No Load Power Consumption | 30W / 10W (In Search Mode) |
| Product Dimensions | L 444mm x W 328mm x H 240mm |
| Net Weight | 30 Kg |
Please see more details in the 'Data Sheets' tab.
Delivery
All items subject to availability and will generally require a 4-6 week turnaround.
We don't hold the stock on hand but have a trusted supplier who will send this direct from their nearest warehouse to ensure you receive it as soon as possible.
Warranty
There is a 5 year replacement warranty on all Victron equipment (excluding batteries). Products will need to be delivered to an authorised technician to be inspected and evaluated.
Please call us for more details and to discuss your next step.
Data Sheets
Please see
