Description
These batteries are designed using only the highest quality components and are backed with our 4-year warranty. This includes the use of a robust Battery Management System (BMS), Aluminium encased prismatic cells, solid busbar connectors and internal protection to reduce movement and damaging vibrations. Our batteries can also be placed on their sides providing versatile installation options.
The integrated Battery Management System is designed to monitor, protect, and optimise each cell within the battery. The BMS maximises the performance of the battery by automatically balancing the cells and protecting them from over charging, over discharging, over temperature, and excessive charge or discharge currents. Our integrated BMS allows our batteries to be used as an alternative replacement for most applications requiring deep cycle batteries, however if the charging system does not support a Lithium charge profile, there are some compromises – please contact Amptron for more information.
Specifications
|
Item
|
Specification
|
Description/Remark
|
|

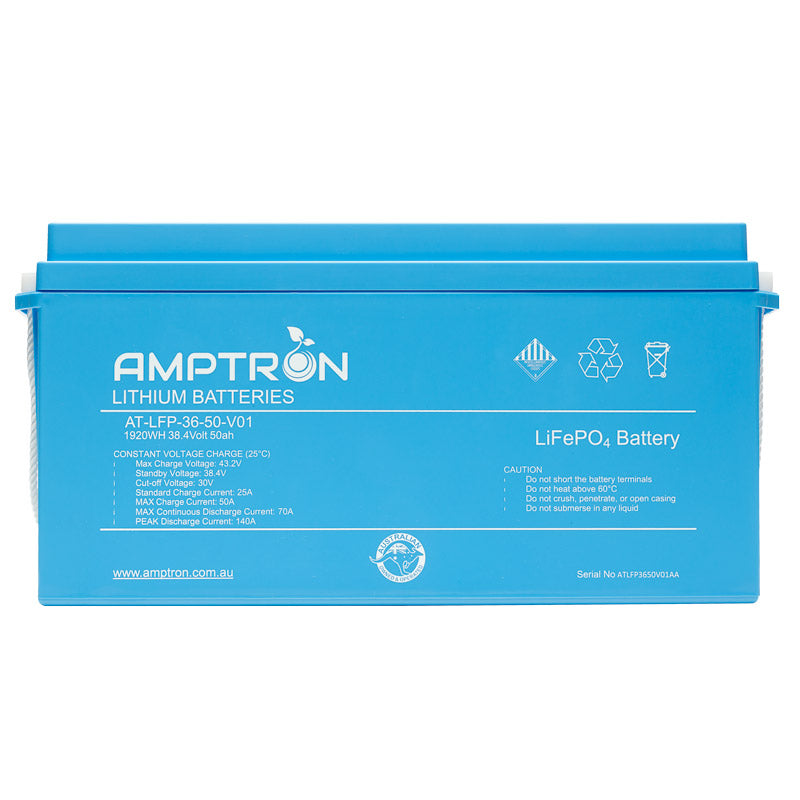

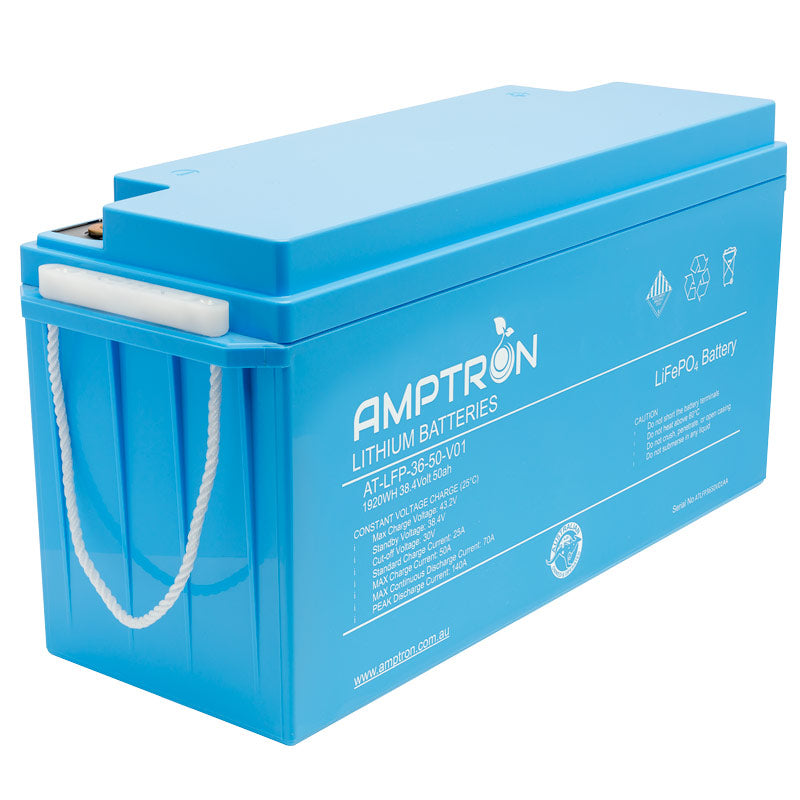

Model
|
AT-LFP-36-50BV01
|
36V 50Ah LiFePO4 Battery
|
|
Chemistry
|
Lithium Iron Phosphate (LiFePO4)
|
|
|
Battery dimensions
|
L-483mm x W-170 x H-240mm
|
|
|
Weight
|
19kg
|
|
|
Cell type
|
3.2V 50Ah
|
Prismatic cells
|
|
Battery module
|
12 pcs 3.2V 50Ah cells, 1 parallel and 12 serial
|
|
|
Casing material for single cell
|
Aluminium
|
|
|
Standard capacity（0.2C5A）
|
38.4V 50Ah / 1920Wh
|
|
|
Cycle life
|
> 2000 cycles at 100% Depth of Discharge (DoD)
|
Under normal usage where the DOD is <80%, cycle life is expected to be up to 5000 cycles
|
|
Rated voltage
|
38.4V
|
Working voltage per cell: 3.2V
|
|
Max charge voltage
|
43.8V
|
Max. charge voltage per cell: 3.65V
|
|
Cut-off volate
|
Nominal 30V
|
Average single discharge voltage per cell: 2.50V
|
|
Depth of discharge (DoD)
|
100%
|
Batteries can be discharged to 100% of the rated capacity
|
|
Optimum charge current
|
10A
|
0.2C
|
|
Charging time
|
Approximately 5 hours
|
When charging from low voltage cut-off point
|
|
Rapid charging
|
Max. charge current 50A (1C)
|
Temperature increase falling within 15°C is normal. Over 15°C will affect the service life of the cells.
|
|
Max continuous discharge current
|
70A
|
1.4C
|
|
Peak discharge current
|
140A
|
2.8C (3 seconds)
|
|
Discharge performance at normal temperature
|
10A (0.2C) ≥ 100％
50A (1C) ≥90％ |
|
|
Operating temperatures
|
Standard 0℃～45℃
Discharge -20℃～65℃ Storage -20℃～45℃ |
|
|
Impedance (Max, at 1000Hz.)
|
≤ 20mΩ
|
|
|
Storage performance
|
Capacity can be kept ≥ 80% in storage for 12months
|
Battery should be kept at -20℃ ～ 45℃ where it’s dry, clean and well-ventilated.
|
|
Connecting Terminals Pos (+) & Neg (-)
|
M8
|
|
|
IP Rating (Ingress Protection)
|
IP65
|
Protected from total dust ingress & Protected from low pressure water jets from any direction |
Please see more details in the 'Data Sheets' tab.
Delivery
We don't hold the stock on hand but have a trusted supplier who will send this direct from their nearest warehouse to ensure you receive it as soon as possible.
Warranty
36V 50Ah / 70A Continuous Discharge LiFePO4 Battery Warranty Sheet
Data Sheets
36V 50Ah / 70A Continuous Discharge LiFePO4 Battery Specifications
