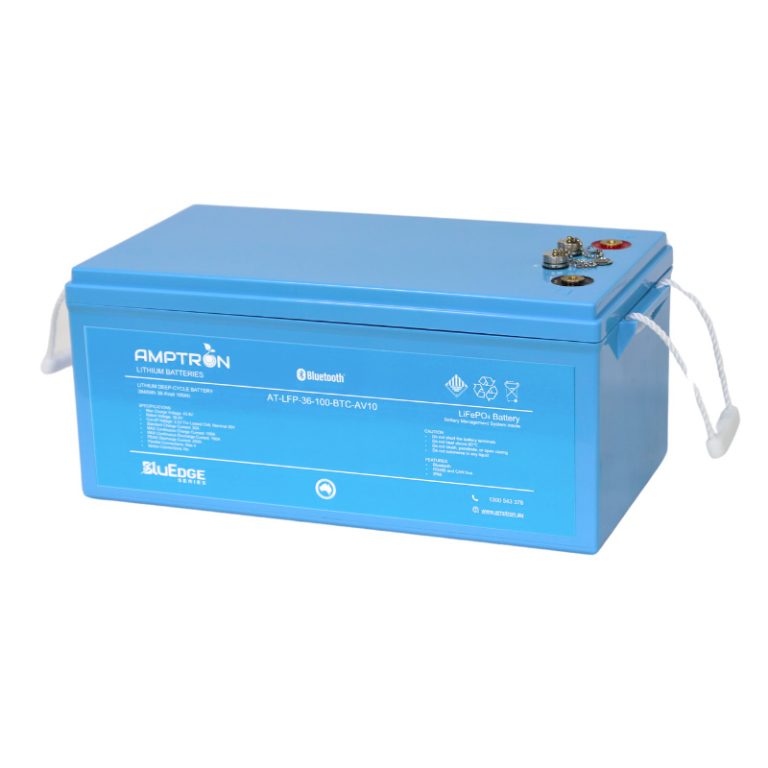

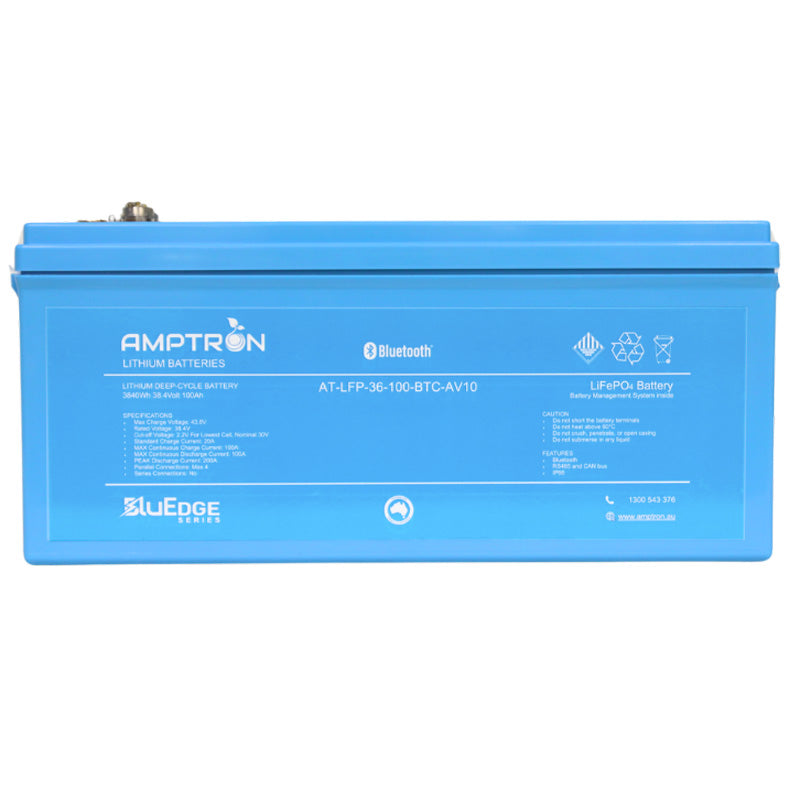

Lithium Battery | Amptron | BluEdge 36V 100Ah / 100A Continuous Discharge LiFePO4 Battery with Bluetooth + RS485 + CAN bus
$2,899.00
SKU: AT-LFP-36-100-BTC-AV10
Description
The Amptron® BluEdge series batteries are our new premium battery range that raises the bar in quality and sophistication. These batteries are designed using only the highest quality components, with innovative features and a robust, tough and highly waterproof construction that meets the modern demand for reliable long-lasting deep cycle batteries. The design includes exceptionally long-life cells backed with a 5-year warranty, and a smart Battery Management system with integrated communication features including Bluetooth, CAN bus and RS485 interfaces.
The BluEdge series batteries are independently tested to comply with the IEC62619 safety standard and are UN38.3 certified. The batteries also comply with all the requirements of the AS/NZS 3001.2:2022 (“Connectable electrical installations and supply arrangements”) standard for RVs, as well as the marine standard AS/NZS 3004.2:2014 (“Electrical installations—Marinas and boats, Part 2: Boat installations”).Out focus on standards compliance gives you peace of mind for the safe, reliable, and compliant performance of the batteries.
Specifications
Peak discharge current (3 seconds)
400A
|
Item
|
Specification
|
Description/Remark
|
|
Model
|
AT-LFP-36-100-BTC-AV10
|
BluEdge Series – 36V 100Ah / 100A Continuous Discharge Lithium LiFePO4 battery + Bluetooth
|
|
Size
|
L-520mm x W-267mm x H-220mm |
|
|
Weight
|
32.5kg
|
|
|
Connection Terminals
|
M8
|
|
|
Connection Terminal Torque Limit
|
6Nm | |
|
Outer Casing Material
|
ABS
|
|
|
Casing material for single cell
|
Nickel plated steel
|
|
|
IP Rating
|
IP66
|
|
|
Chemistry
|
Lithium iron Phosphate (LiFePO4) |
Working voltage per cell: 3.2V | Max. charge voltage per cell: 3.65V
|
|
Cell Type
|
Prismatic |
|
|
Rated Capacity
|
100Ah / 3840WH (at 0.2C)
|
|
|
Battery packs in series
|
Not Supported
|
|
|
Battery packs in parallel
|
Supported | |
|
Battery cycle life
|
6000 times (0.2C standard charge & discharge)
|
Batteries can be discharged to 100% of the rated capacity
|
|
Rated voltage / nominal voltage
|
38.4V |
|
|
Operating voltage range
|
30V-43.8V
|
|
|
Shipping voltage
|
36-43V | |
| Recommended charge voltage |
43.2V
|
|
|
Max charge voltage
|
43.2V
|
|
|
Cut-off voltage
|
30V / When lowest cell reaches 2.5V
|
|
|
Depth of discharge (DoD)
|
100% Recommended DoD 80%
|
|
|
Standard
(Recommended charge current)
|
20A
|
|
|
Charging time at recommended charge current
|
4-5 Hours
|
|
|
Maximum charge current
|
100A
|
|
|
Max continuous discharge current
|
100A
|
|
|
Peak discharge current (2 seconds)
|
200A
|
|
|
Internal resistance
|
≤ 20mΩ
|
|
|
Operating power consumption
|
≤ 25mA
|
|
|
Operating temperature
|
Charge: -0°C～55°C (Ambient)
Discharge: -20°C～60°C (Ambient)
|
|
|
Storage temperature range
|
Within 2 months -20°C～40°C
Within 6 months -10°C～35°C
|
|
|
Recommended storage temperature
|
20°C±5°C
|
|
|
Storage humidity range
|
10%-90%
|
|
|
Recommended storage duration
|
Charge to 39.9V or 40-60% SOC
every 6 months
|
|
|
Cell over charge protection
|
3.65V±0.05V
|
|
|
Cell over discharge protection
|
2.5V±0.1V
|
|
|
Charging over current protection
|
105A (8s)
|
|
|
Discharging over current protection
|
1st 180A (3.5s)
2nd 200A (2s)
|
|
|
Short circuit protection
|
500A (400us)
|
|
|
High temp discharge / charge protection
|
60°C±5°C
|
|
|
Low temp discharge / charge protection
|
-10°C±5°C
|
E
Please see more details in the 'Data Sheets' tab.
