Description
Get Your System Built up Easier & Faster in Just One Go
No more worries about compatibility between different components.
Powerful to the Core
Offering you consistent power that is almost 10 times longer than an average lead-acid battery, Renogy 12V 300Ah Core LiFePO4 Battery features EV-grade battery cells to ensure lasting performance.
Protections from Bumps
We know that it always take a bumpy ride before arriving your dream destination. With that in mind, the battery comes with rugged structural design to protect components from bumping up and down on the road.
Connect in Series-Parallel
Considering stepping up both the voltage & capacity of your system? Try connecting sets of batteries in series-parallel to yield maximum power for getting prepared for emergencies like outages and hurricanes.
Specifications
|

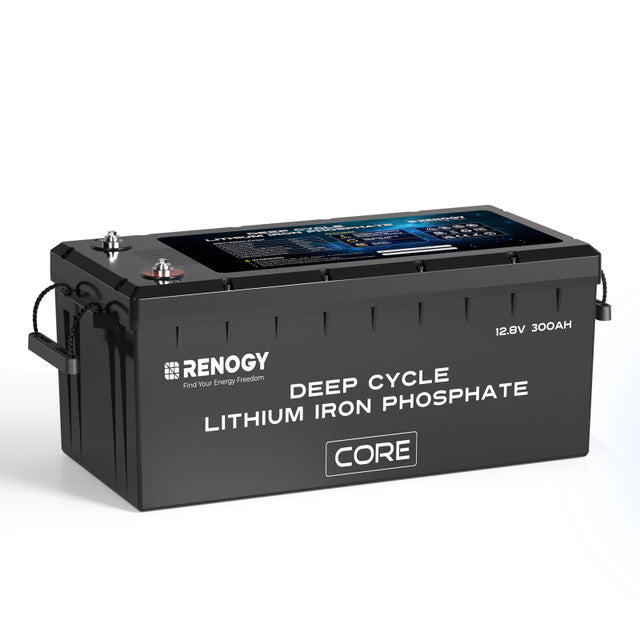

CORE SERIES - 12V 300AH DEEP CYCLE LITHIUM IRON PHOSPHATE BATTERY
|
|
Battery Type: Lithium Iron Phosphate
|
|
Nominal Voltage: 12.8V
|
|
Rated Capacity: 300Ah (0.5C, 25℃)
|
|
Charge Voltage: 14.4V
|
|
Maximum Charge Current: 200A
|
|
Maximum Discharge Current: 200A
|
|
Cycle Life (0.5C/1C, 25℃): 5000 Cycles (80% DOD, 80% EOL)
|
|
Charge Temperature Range: -4°F~131°F (-20°C~55°C)
|
|
Discharge Temperature Range: -4°F~140°F (-20°C~60°C)
|
|
Storage Temperature Range: -13°F~149°F (-25C~65°C)
|
|
Operation Relative Humidity: 10%~95%
|
|
Connection Method: "Series (Up to 4) Parallel (Up to 4) Series & Parallel (4S4P)"
|
|
Communication Protocol: N/A
|
|
Terminal Bolt Size: M8
|
|
Recommended Terminal Torque: 10 N·m~12 N·m
|
|
Housing Material: ABS
|
|
Protection Rating: IP65
|
|
Dimensions: 20.55 x 9.45 x 8.62 inch (522 x 240 x 219 mm)
|
|
Weight: 69.0 lbs. (31.3 kg)
|
|
ACCESSORIES
|
|
Long Terminal Bolts (2): M8
|
| WARRANTY |
|
Material and Workmanship Warranty: 5 Years
|
|
Certifications: MSDS, UN38.3, FCC , PSE, CE, UKCA
|
Delivery
All items subject to availability and will generally require a 1-3 business day turnaround.
We don't hold the stock on hand but have a trusted supplier who will send this direct from their nearest warehouse to ensure you receive it as soon as possible.
Warranty
Material Warranty: 5 year warranty
Please call us for more details and to discuss your next step.
Data Sheets
Please see
12V 300Ah Core Series Deep Cycle Lithium Iron Phosphate Battery Manual
12V 300Ah Core Series Deep Cycle Lithium Iron Phosphate Battery Warranty
