Control/Monitor | Renogy | Monitoring Screen for Rover Elite Series
$29.99
or 4 interest-free payments of
$7.49
with
SKU: RMS-RVRE-AU
DESCRIPTION

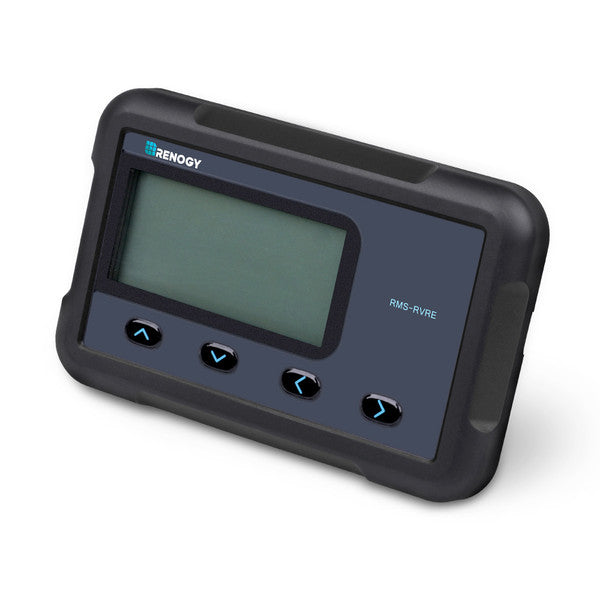

The RMS-RVRE is a high precision meter designed for Rover Elite charge controllers. Featuring a backlit display and flush-mountable, it is engineered for an aesthetically clean and professional look on RVs or camper walls. Utilize the 4-key input to easily navigate through your system information or modify quick parameters as well as identify any error codes. The RMS-RVRE is the perfect monitor companion to optimize any solar system!
KEY FEATURES
Plug and Play- Simply connects the monitoring screen to the charge controller using an RJ45 communication cable for real-time monitoring.
- Obtains charge controller status directly from the Rover Elite for precise tracking and monitoring.
- Displays straightforward warning codes for the quick recognition of potential abnormal conditions and improper operation.
- Shows detailed system information at the push of a button without the need of system configuration and calibration.
Â
PACKAGE INCLUDES
|
Monitoring Screen for Rover Elite Series
1 x |
Â
SPECIFICATION
Â
| ELECTRICAL SPECIFICATIONS | MECHANICAL SPECIFICATIONS |
|---|---|
| Supply Voltage: 5VDC | Communication Port: RJ45 (RS485 Protocol) |
| Supply Current: 30mA | Display: Backlit LCD |
| Power Consumption: <1W | User Interface: 4 Front Panel Menu Buttons |
| Operating Temperature Range: -4°F~113°F / -20°C~45°C | Mounting System: Wall Mount |
| Voltage Accuracy: ±0.1V | Dimension: 2.76 x 4.33 x 1.25 inch / 70 x 110 x 31.8 mm |
| Current Accuracy: ±0.1A | Weight: 0.14 lbs / 62 g |
| Â | Wire Length: 16.4ft / 5m |
| Â | Mounting Screw: M2.9x13mm |
| Certifications： |  |
| ROHS | YES |
| FCC | YES |
| EMC | YES |
Â
WARRANTY INFORMATION
| Accessories | 1-year material warranty |
