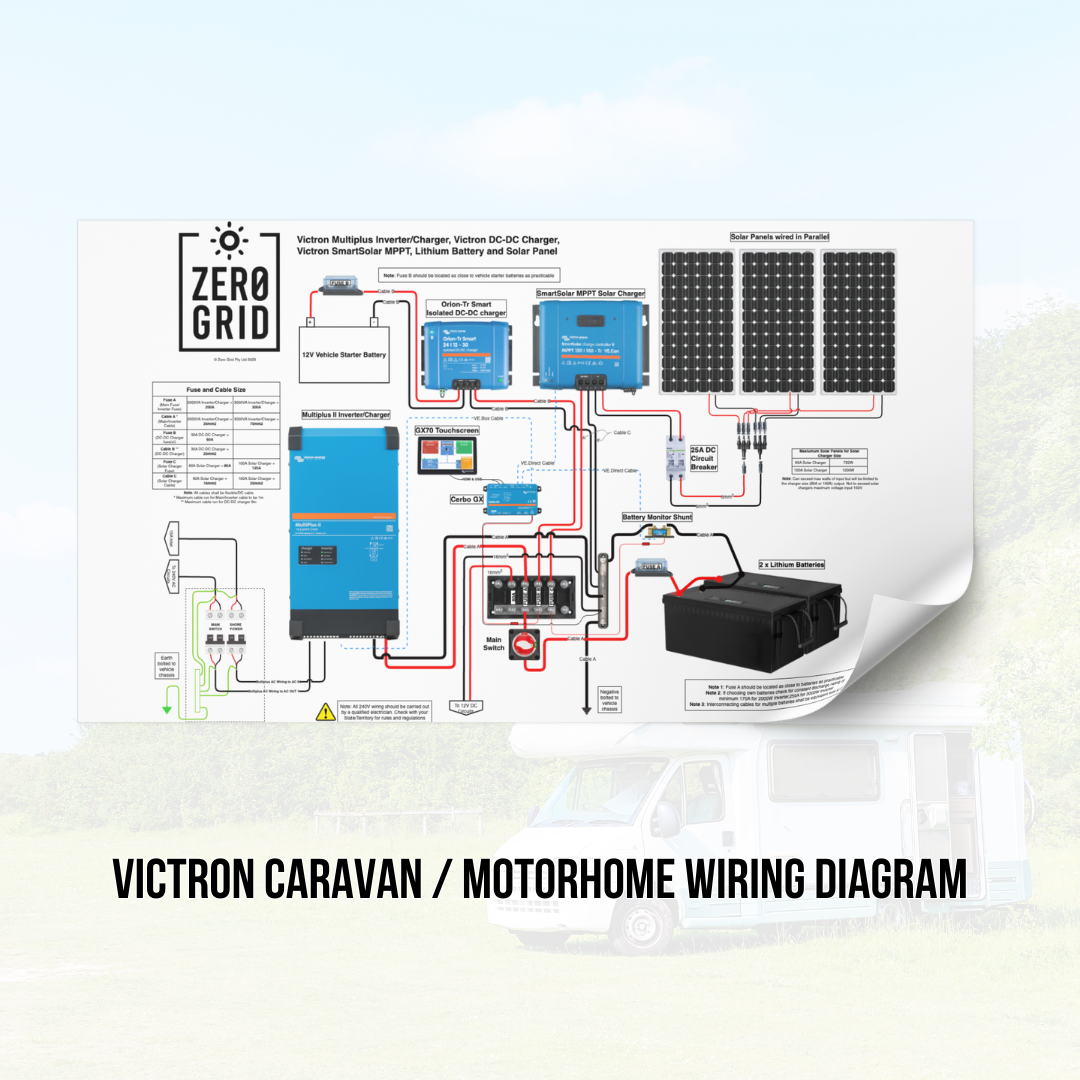

OFF GRID WIRING DIAGRAM TO SUIT CARAVAN or MOTORHOME
This kits includes all the details on how to wire together with the correct cable size/fuses etc sent straight away to you to download as a PDF.
Components used in this diagram
- Victron 12V Multiplus 2KVA or 3KVA
- Victron SmartSolar 150/60 or 150/100
- 12V Lithium Batteries
- Victron Orion DC-DC Charger 30A
-
Cerbo GX
- GX70 7" Touchscreen
- Victron Smart Shunt
- Mega Fuse Distribution
- Neutral Bar
- Mega Fuse Holder
- Fuses 60A, 80A, 100A, 125A, 200A or 300A
- Solar DC circuit breaker
- Battery Switch ON/OFF
If you need a hand to work out what drawing will suit your application best feel free to book a call with our in house Electrician, Landon by clicking here
Global Availability
Our off-grid wiring diagrams are applicable worldwide, meaning they can assist you in achieving your off-grid objectives regardless of your location.
Customer Reviews
Based on 4 reviews
100%
(4)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
L
Clearly described with good diagrams, made it easy to install two Solar chargers and integrate with BMPro. Adding fuses and busbars to simplify the set up.
Zerogrid are good to work with.
P
Great, simple and easy to follow diagram for my first off grid build.
I built it up on a board over a few hours in the shed then installed it into the caravan and integrated it with the existing bmpro system.
Off Grid has some good info also on their you tube channel.
The only issue I had was not being able to access the multiplus online to adjust the settings. Landon helped me out and set it up for me,, accessing it remotely via the internet and also double checked the settings of the other Victron gear in my install.
Absolutely fantastic service Off Grid. Highly recommended.
D
Very detailed diagram with good information!
S
This diagram was very helpful in my design planning for my off grid system
Price was great
Delivery instant
Courteous but not pushy follow
Up
