Description
AMPTRON® Lithium Iron Phosphate (LiFePO4) battery chargers are state-of-the-art battery chargers with a charging profile specifically designed to charge and maintain Lithium Iron Phosphate (LiFePO4) batteries, and can safely achieve a 100% State of Charge.

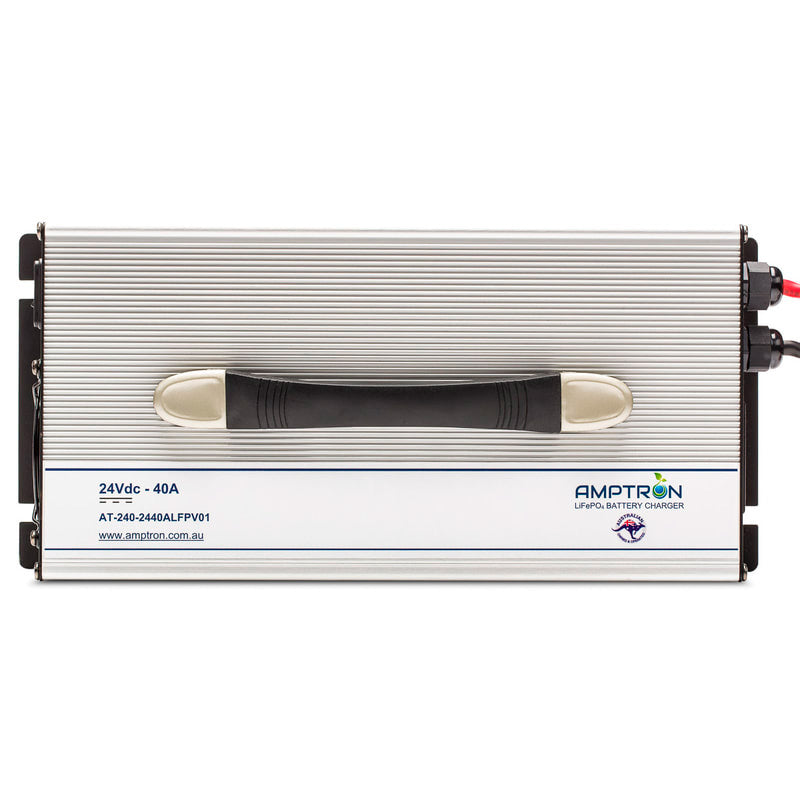

The 24V 40A model charger operates from mains AC 200-264V as input, supplying up to a large 40A charging output suitable for nominal 24V LiFePO4 battery banks. The charger’s built-in protection technology provides protection against Over Voltage and Over Current output, Short Circuit and Reverse Polarity making it very safe to use.
Specifications
|
Item
|
Specification
|
Description/Remark
|
|
Model
|
AT-240-2440ALFPV01
|
AC/DC 24V 40A LiFePO4 Battery Charger
|
|
Input Voltage
|
min 200Vac to max 264Vac
|
|
|
Input Power
|
Max 1458W
|
|
|
Constant charge voltage
|
Vdc min 28.9V to max 29.5V
|
|
|
Constant charge current
|
Min 38A to max 42A
|
|
|
Charge complete current
|
Vdc min 3.0A to max 3.4A
|
8%
|
|
Ripple voltage
|
650mV
|
|
|
Efficiency
|
85%
|
At full load
|
|
Product Dimensions
|
L-290mm x W-150mm x H-90mm
|
|
|
Weight
|
4Kg
|
Please see more details in the 'Data Sheets' tab.
Delivery
We don't hold the stock on hand but have a trusted supplier who will send this direct from their nearest warehouse to ensure you receive it as soon as possible.
Warranty
AC-DC 24V 40A Lithium LiFePO4 Battery Charge Warranty Sheet
Data Sheets
AC-DC 24V 40A Lithium LiFePO4 Battery Charge Specifications
