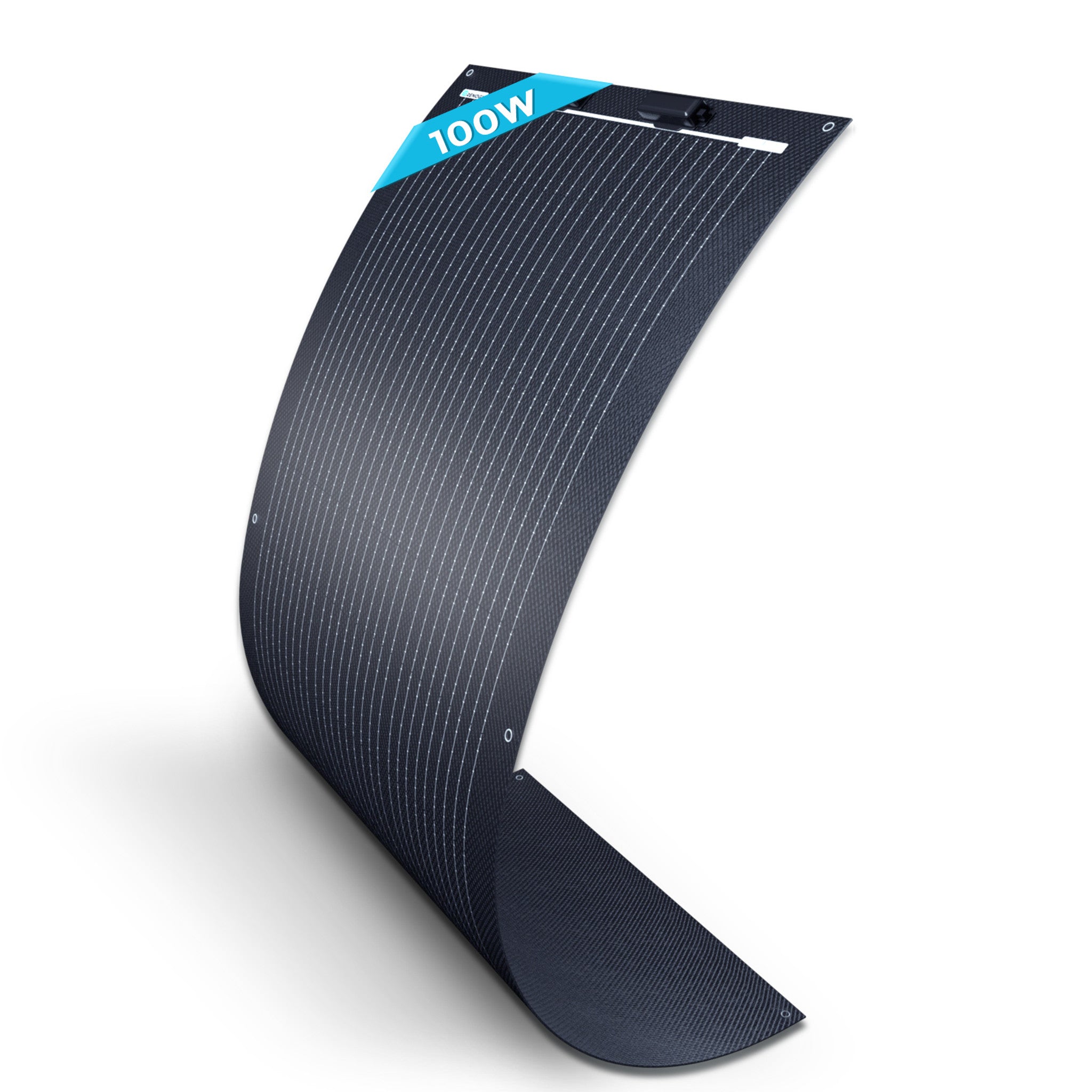

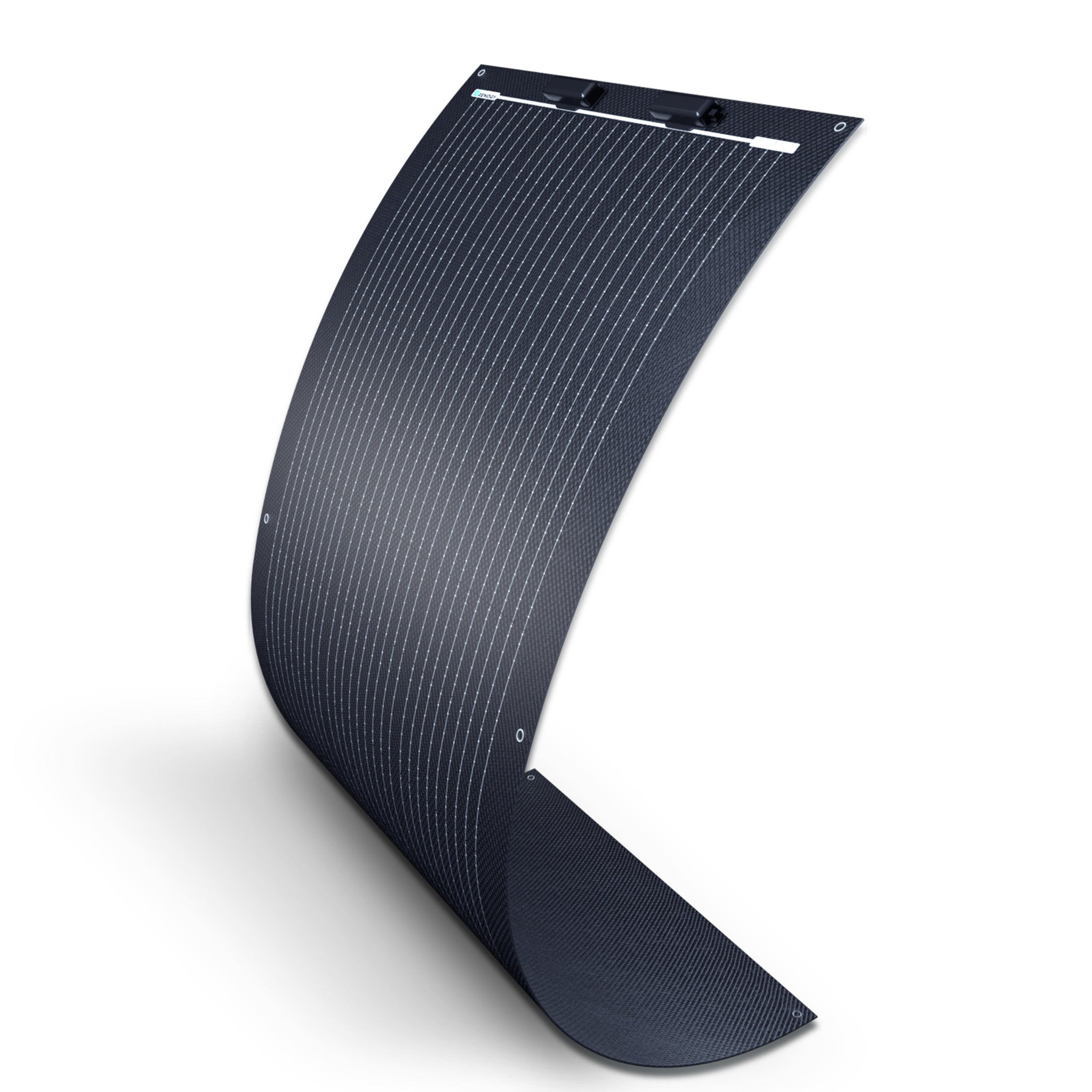

The Renogy 100W Black Division Lightweight Solar Panel enhances module efficiency while minimising its weight. It is the perfect option for any off-grid solar system, especially for transportation applications such as RVs and boats. This solar panel frame features a lightweight substrate and laminate, perfect for outdoor applications.
This solar panel combines high efficiency (PERC) monocrystalline solar cells with half-cut cell technology to improve electrical performance and power generation efficiency. This panel comes with pre-drilled mounting holes, solar connectors, and a junction box that allows easy and fast installation.
High Power Output

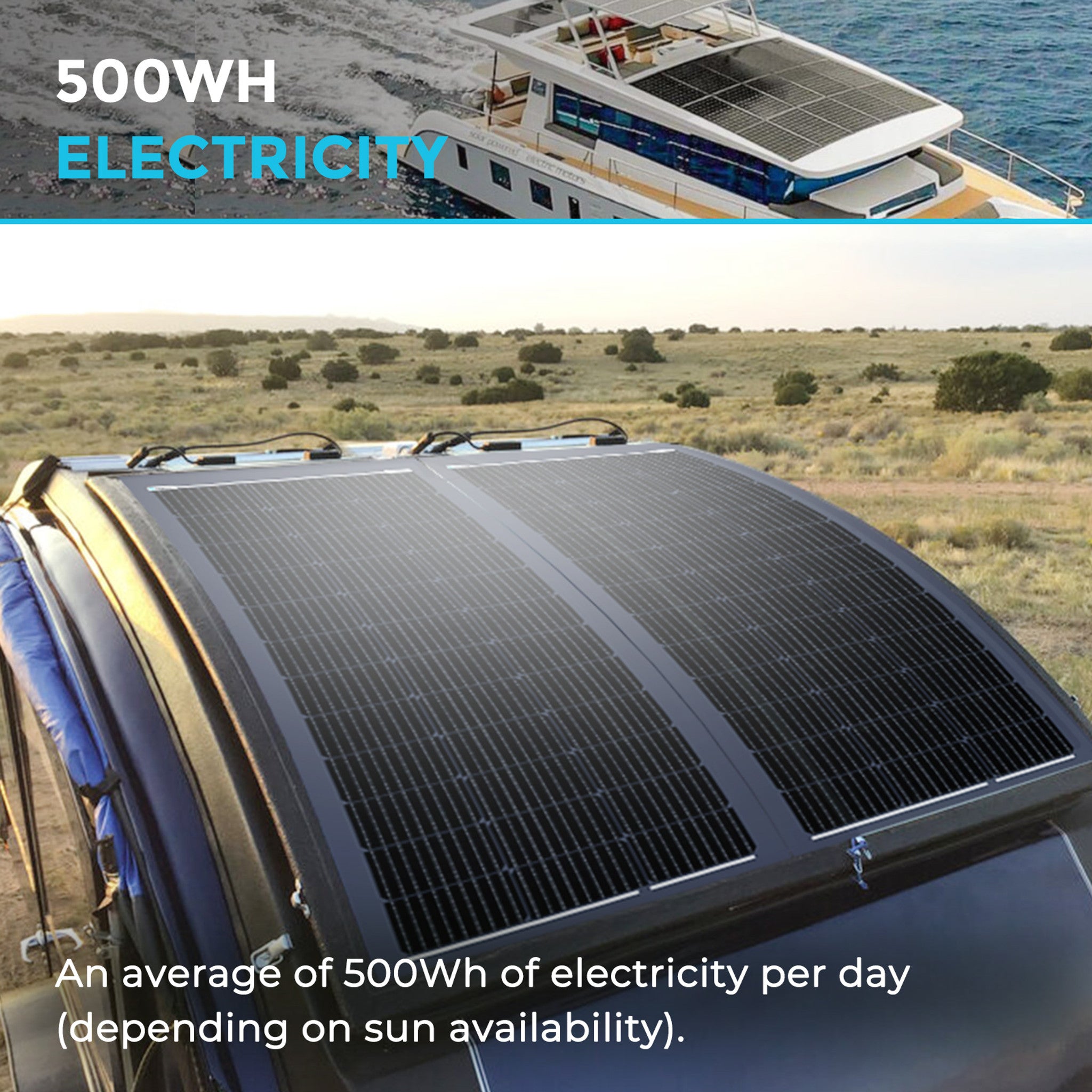

The Renogy Black Division 100W Lightweight Solar Panel can provide an average of 500 Watt-hours of electricity per day (depending on sun availability).
Easy to Transport, Carry and Install
The solar panel suits most curved surfaces as it is bendable within 240 degrees. It weighs only 1/3 of the rigid panel and presents an all-black glare-free appearance.
Industry-leading Tech

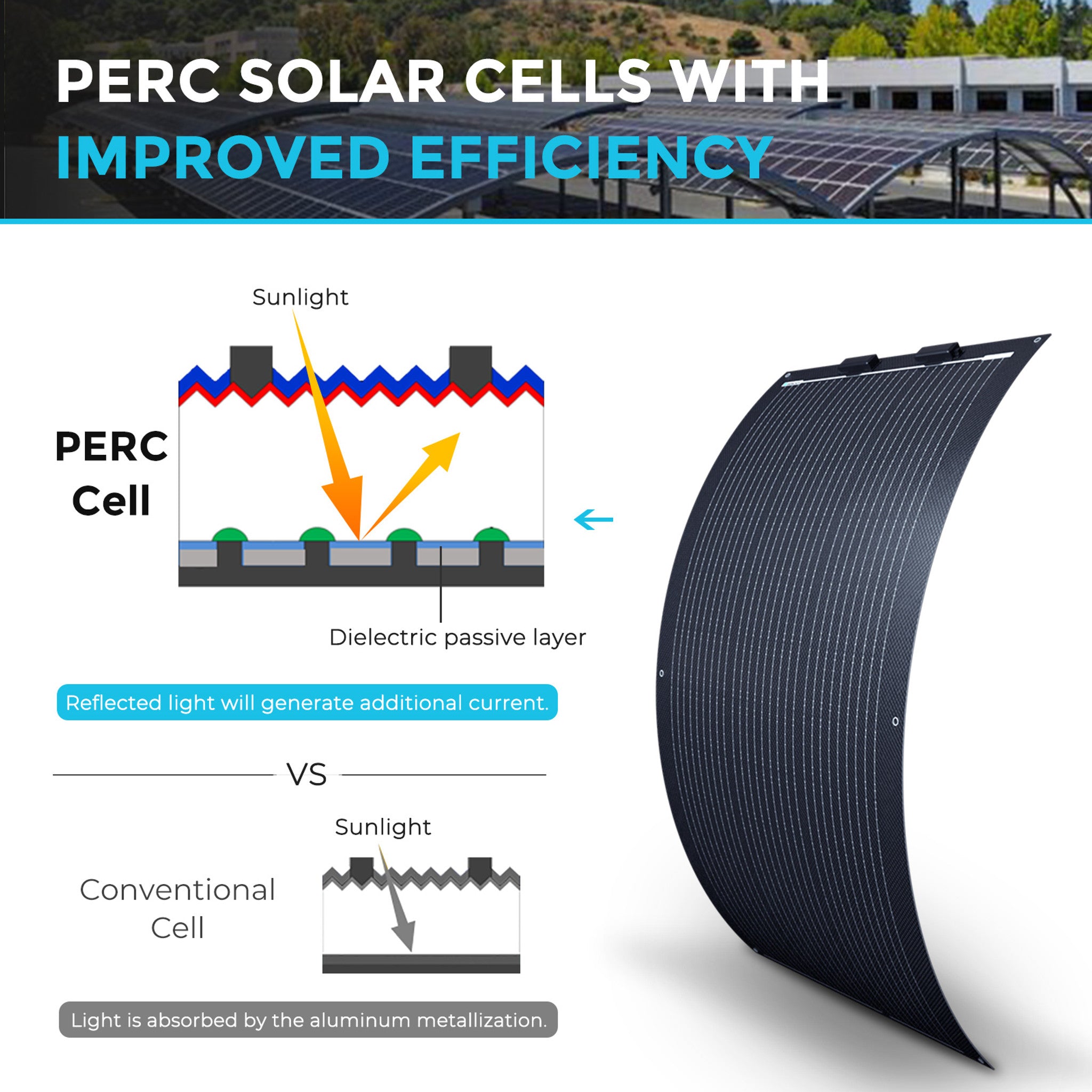

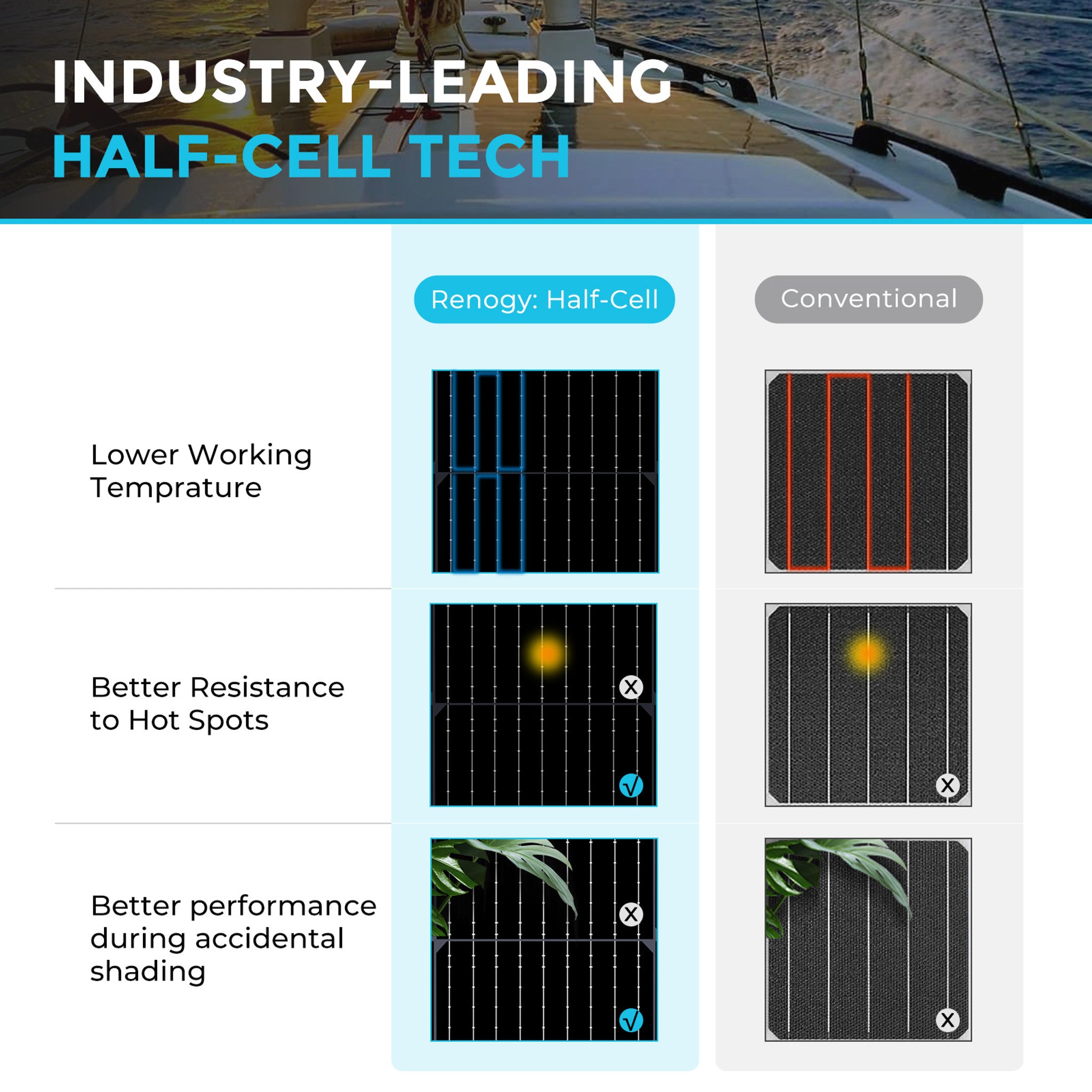

It is equipped with half-cut PERC cell technology that enhances solar light capture and electrical performance, therefore improving the output efficiency.

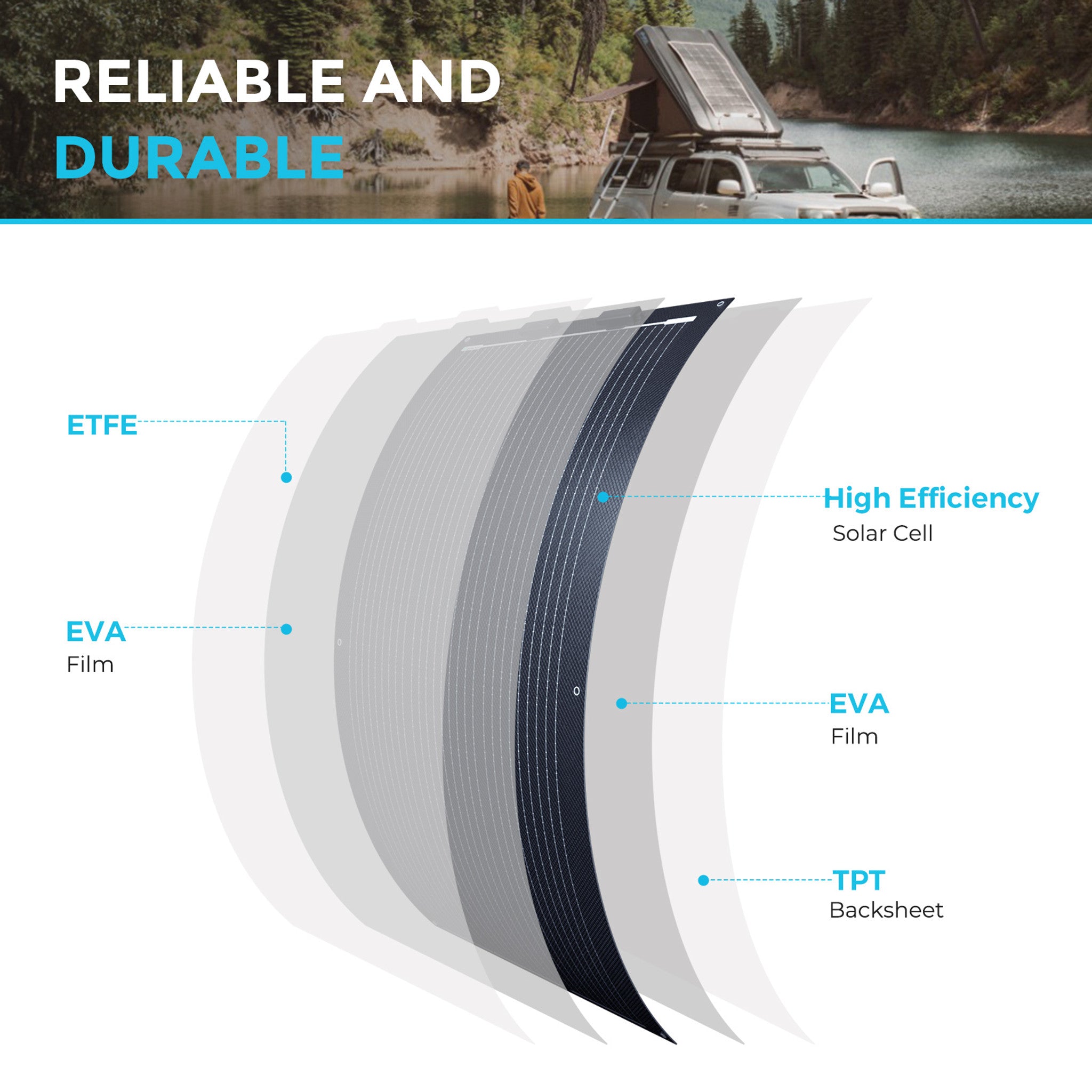

Reliable & Durable
This solar panel comes with IP67 rated waterproof junction box and solar connectors. With an ability to withstand up to 5400 Pa of heavy snow load and up to 2400 Pa of high wind.
Ready for Installation
The panel comes with pre-drilled mounting holes and 700mm long solar connector cables for quick and easy installation.
100W Black Division Lightweight Monocrystalline Solar Panel 1 x
|
Max Power at STC |
100W |
Short Circuit Current (Isc) | 5.51A |
Optimum Operating Current (Imp) | 5.20A |
Open Circuit Voltage (Voc) | 23.5V |
Optimum Operating Voltage (Vmp) | 19.4V |
Operating Temperature | -40°C to 80°C / -40°F to 176°F |
Module Efficiency | 15.7% |
Maximum System Voltage | 600V DC |

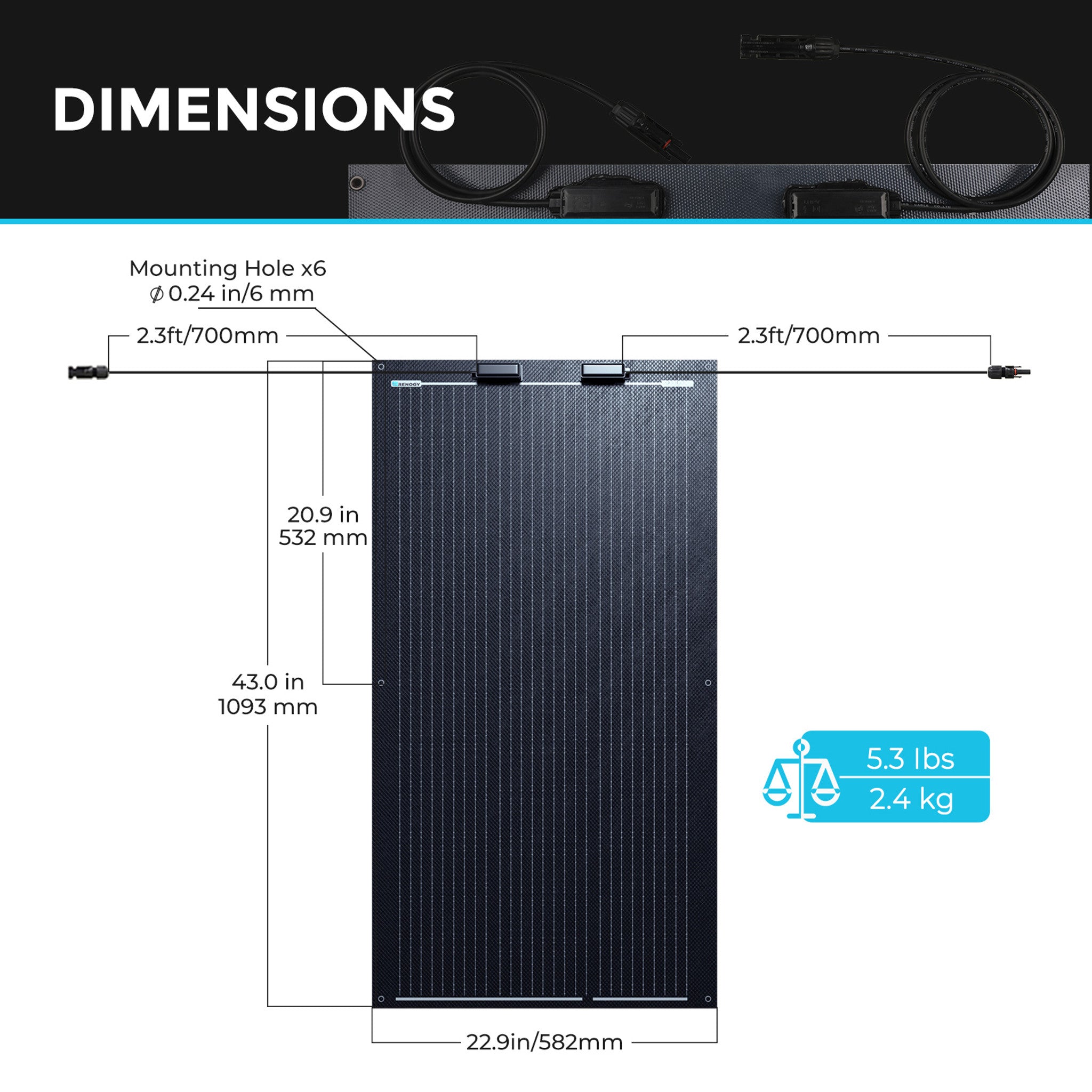

Dimensions |
1093mm x 582mm x 20.5mm |
Weight | 2.4 kg |
Panel Leads (Pair) | 3.3088mm2, 0.3m long |
Certifications | CE, ISO |
Please see more details in the 'Data Sheets' tab.
All items subject to availability and will generally require a 1-3 business day turnaround.
We don't hold the stock on hand but have a trusted supplier who will send this direct from their nearest warehouse to ensure you receive it as soon as possible.
25 year power output warranty: 5 year 95% output, 10 year 90% output, 25 year 80% output.
Material and Workmanship Warranty: 5 year warranty
Please call us for more details and to discuss your next step.
Please see
100W Black Division Lightweight Monocrystalline Solar Panel Manual
100W Black Division Lightweight Monocrystalline Solar Panel Warranty
