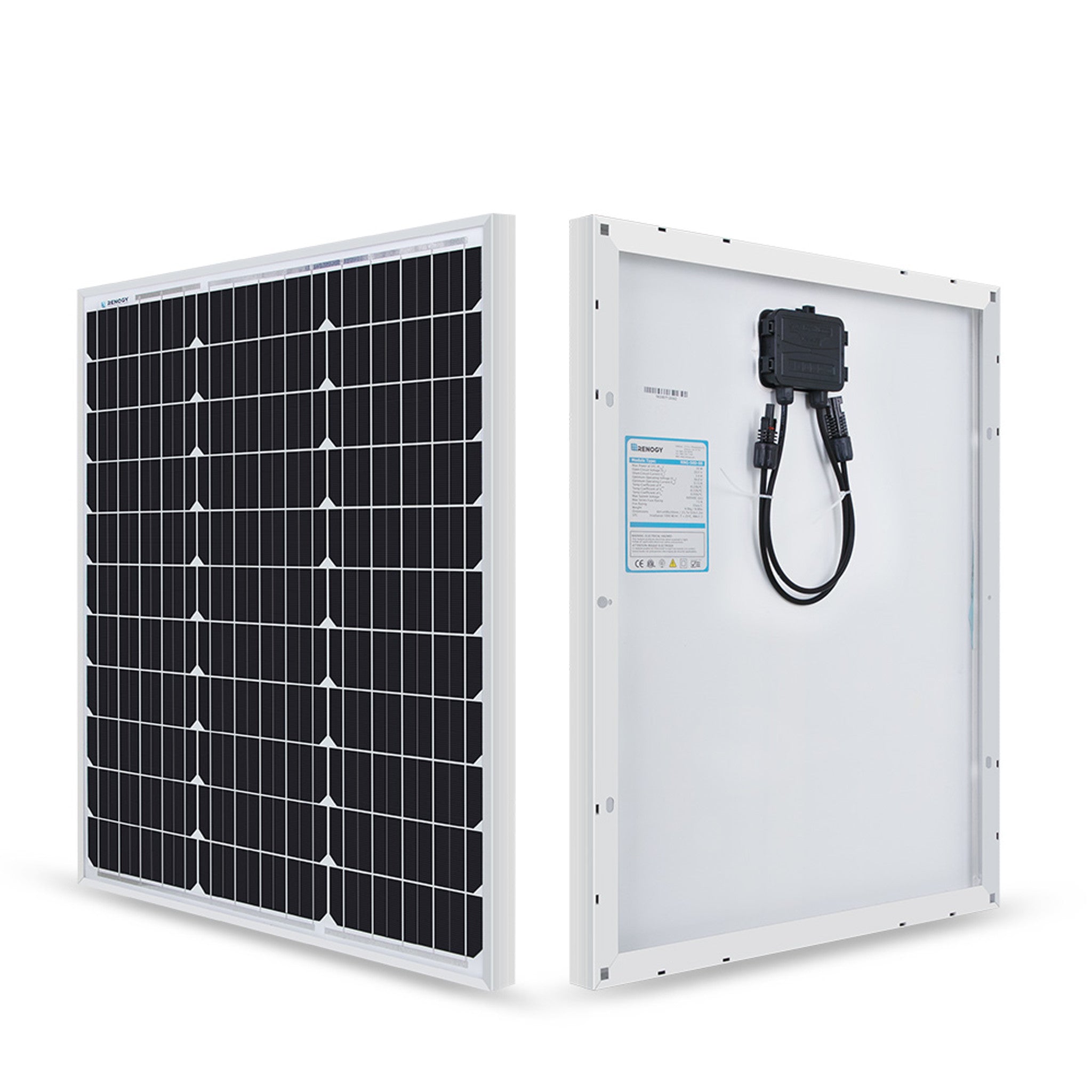

Renogy 50 Watt 12 Volt Monocrystalline Solar Panel
RNG-50D-SS-AU
- $99.99
$0.00- $99.99
- Unit price
- per
or 4 interest-free payments of
$24.99
with
• 581mm x 509mm x 30mm in Size
• Perfect for filling the small spaces on the Caravan Roof
Description
More compact than ever, the Renogy 50 Watt 12 Volt Monocrystalline Solar Panel is the perfect intro panel for solar beginners, or for seasoned users in need of a small solar setup. This key component is equipped with solar leads, making it easy to build or expand your solar system. Small but mighty, this 50W solar panel can power off-grid applications such as backyard lighting and sprinklers, or recharge batteries for marine use and dry camping. Give yourself a power boost with this new edition 50W panel and start your solar adventure.
KEY FEATURES
Reliable
The advanced encapsulation material with multi-layered sheet laminations enhances cell performance and provides a long service life. The solar modules have been EL tested with no hot-spot heating guaranteed. Bypass diodes minimise power drop caused by shade and ensure excellent performance in low-light environments. The TPT back sheet ensures smooth performance over a long period of time.
Efficient Performance
Bypass diodes protect the solar cells from overheating and allow the solar panel to continue working during accidental shading by bypassing the underperforming cells.
Built to Last

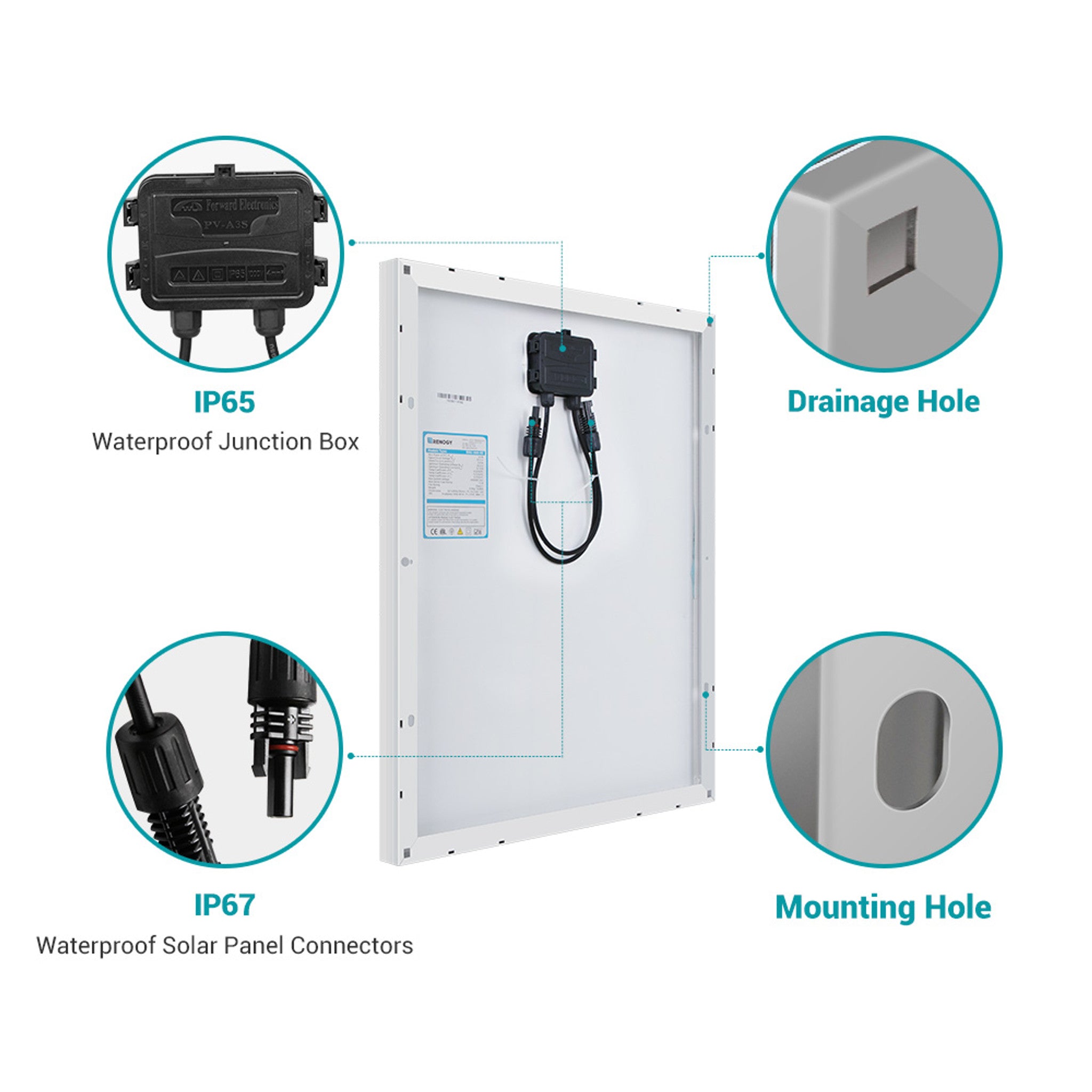

Corrosion-resistant aluminium frame provides extended outdoor use that ensures the panel can last for decades. This panel is rated to withstand high winds and snow loads. The IP65 rated junction box is versatile due to its ability to withstand dirt, dust, debris, and low-pressure water jets.
Fast and Easy Installation
Pre-drilled holes on the back of the panel allow for fast mounting and securing, ideal for off-grid applications including RVs, rooftops, cabins, yachts, and more. They are directly compatible with Renogy ground mounts, Z Brackets, Corner Brackets, Pole Mounts, and Tilt Mounts.
Pre-drilled holes on the back of the panel allow for fast mounting and securing, ideal for off-grid applications including RVs, rooftops, cabins, yachts, and more. They are directly compatible with Renogy ground mounts, Z Brackets, Corner Brackets, Pole Mounts, and Tilt Mounts.
PACKAGE INCLUDES
|
50 Watt 12 Volt Monocrystalline Solar Panel (New Edition)
1 x |
Specifications
| Max Power at STC | 50W |
| Short Circuit Current (Isc) | 2.94A |
| Optimum Operating Current (Imp) | 2.69A |
| Open Circuit Voltage (Voc) | 22.3V |
| Optimum Operating Voltage (Vmp) | 18.6V |
| Operating Temperature | -40°C to 90°C / -40°F to 194°F |
| Module Efficiency | 17% |
| Maximum System Voltage | 600 VDC (UL) |
| Number of Cells | 33 |
| Dimensions |
581mm x 509mm x 30mm |
| Weight | 3.5kg |
| Panel Leads (Pair) | 2.0809mm2, 0.4m long |
| Certifications | CE, ISO |
Please see more details in the 'Data Sheets' tab.
Delivery
All items subject to availability and will generally require a 1-3 business day turnaround.
We don't hold the stock on hand but have a trusted supplier who will send this direct from their nearest warehouse to ensure you receive it as soon as possible.
Warranty
25 year power output warranty: 5 year 95% output, 10 year 90% output, 25 year 80% output.
Material and Workmanship Warranty: 5 year warranty
Accessories: 1 year material warranty
