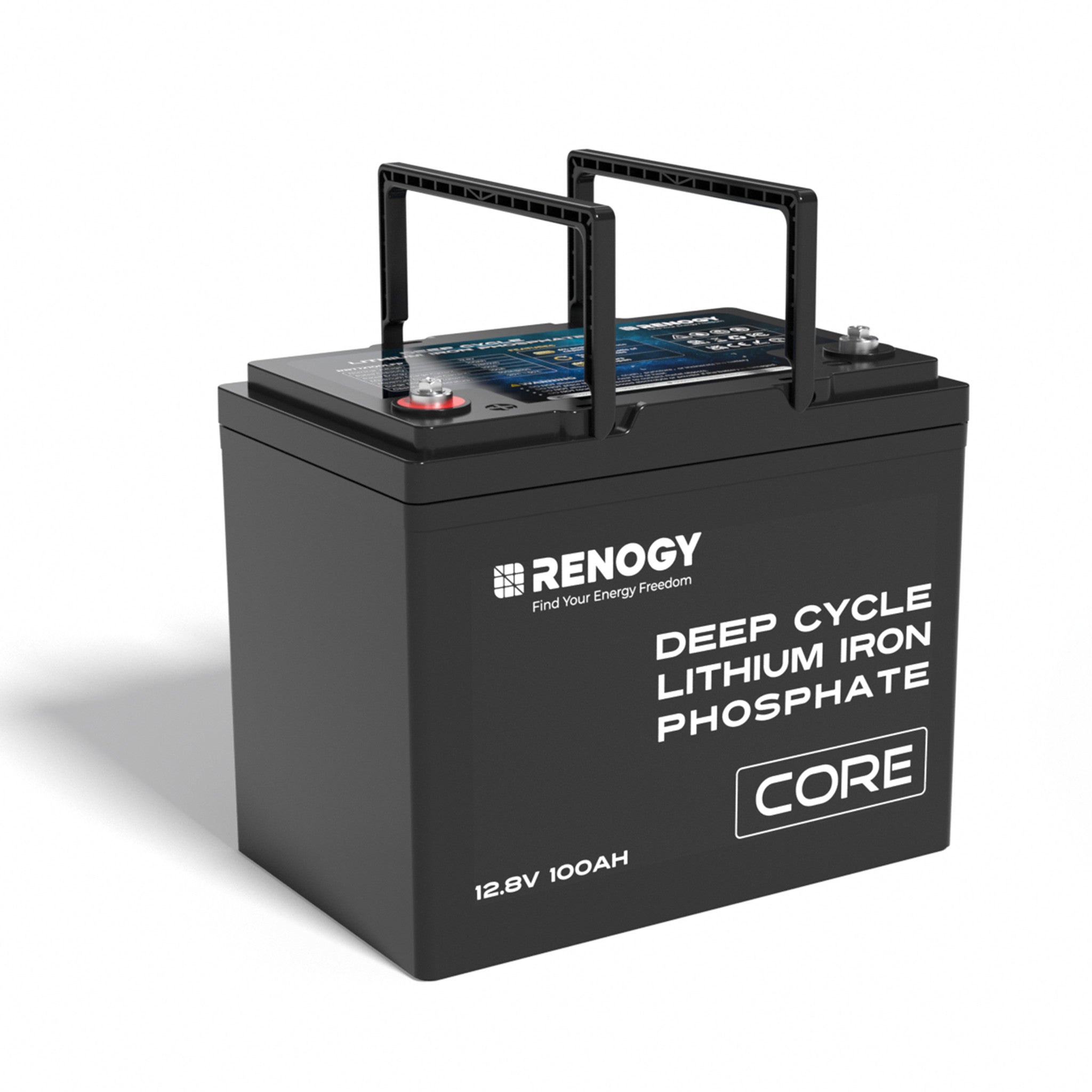

Meet Renogy 12V 100Ah Core Series Battery, your trusted, one-stop solution for upgrading from Lead to Lithium. Compatible with Renogy's solar panels, solar charge controllers, and inverters, this battery delivers a seamless upgrade experience without compatibility issues.
With a positive capacity tolerance of up to 6%, the Core series batteries provide extra power beyond their rated capacity, ensuring that you're covered during outages, hurricane season, and other emergencies. Connect multiple batteries in series-parallel to keep your system running longer and it can be used in trolling motor.
Off-grid living can be challenging, but the Renogy 12V 100Ah Core Battery offers a true 100A battery management system (BMS), low-temp cut-off (for charging), and IP65 protection, giving you the confidence to tackle any obstacles.
Whether you are planning an upgrade from old lead-acid batteries, or starting to build your first-ever off-grid power system, the Renogy 12V 100Ah Core LiFePO4 Battery is your go-to option to get your project done right in an easier & faster way.
Connect in Parallel
Extend the runtime of your off-grid power system by connecting our batteries in parallel. You can get up to 10.24kWh of power with 16 Renogy 12V 100Ah Core Series Batteries.
Connect in Series
Now, you can wire 12V 100Ah Core Series Batteries in series to build a 24V, 36V, or even 48V system in your RV.
or Connect in Series-Parallel
Considering stepping up both the voltage & capacity of your system? Try connecting sets of batteries in series-parallel to yield maximum power for getting prepared for emergencies like outages and hurricanes.
Extra Juice. More Possibilities
Renogy 12V 100Ah Core delivers more than you imagine. Get max. 6% more capacity to brace for the unexpected storms, hurricane, wildfire, and other challenges whenever you need.
Powerful to the Core
Offering you consistent power that is almost 10 times longer than an average lead-acid battery, Renogy 12V 100Ah Core LiFePO4 Battery features ev-grade battery cells to ensure lasting performance.
Year-round Protections
The built-in 100A battery management system (BMS) brings you peace of mind for all-year-round use. The low-temperature cut off actively prevents your battery from charging when the mercury plunges below 0°C.
Protections from Bumps
We know that it always take a bumpy ride before arriving your dream destination. With that in mind, the battery comes with rugged structural design to protect components from bumping up and down on the road.
RENOGY 12V 100Ah CORE SERIES DEEP CYCLE LITHIUM IRON PHOSPHATE BATTERY | |
---|---|
Rated Capacity (0.5C, 25°C) | 100Ah |
Nominal Voltage | 12.8V |
Charge Voltage | 14.4V |
Voltage Range | 10V~14.8V |
Maximum Continuous Charge Current |
100A |
Maximum Continuous Discharge Current | 100A |
Peak Discharge Current | 300A@10s |
Cycle Life (0.5C, 1C, 25°C) | 5000 Cycles (80%EOL, 80%DOD) |
Charge Temperature Range | 0°C-55°C (32°F-131°F) |
Discharge Temperature Range | -20°C-60°C (-4°F-140°F) |
Storage Temperature Range | -25°C-65°C (-13°F-149°F) |
Operation Relative Humidity | 10% to 95% |
Dimension | 260mm x 169mm x211mm |
Weight | 10.5kg |
Connection Method | Series & Parallel (4S4P) |
All items subject to availability and will generally require a 1-3 business day turnaround.
We don't hold the stock on hand but have a trusted supplier who will send this direct from their nearest warehouse to ensure you receive it as soon as possible.
Material Warranty: 5 year warranty
Please call us for more details and to discuss your next step.
Please see
12V 100Ah Core Series Deep Cycle Lithium Iron Phosphate Battery Manual
12V 100Ah Core Series Deep Cycle Lithium Iron Phosphate Battery Specifications
