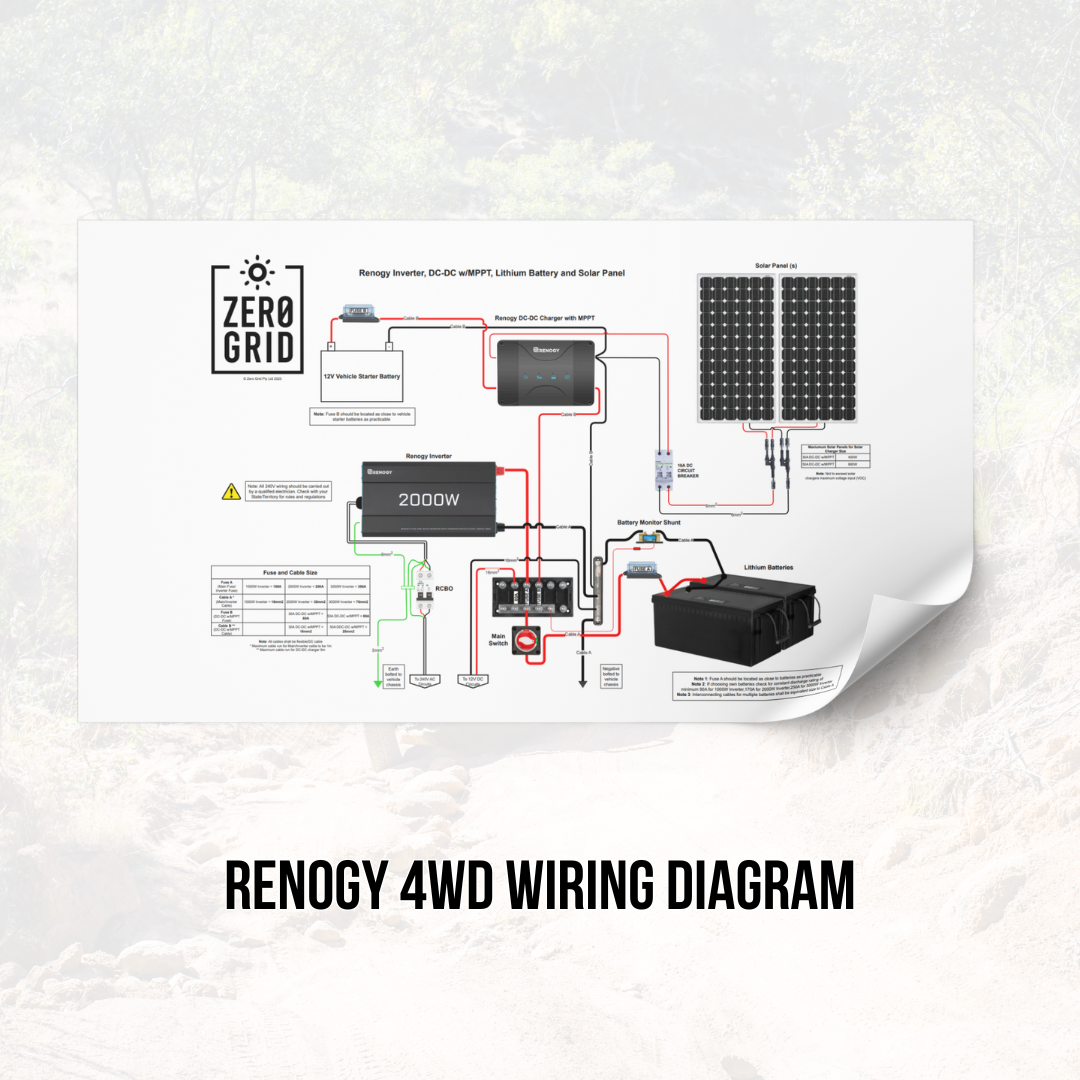

Renogy 4WD (12V Inverter, DC-DC with MPPT)

OFF GRID WIRING DIAGRAM TO 4WD or VAN

This kits includes all the details on how to wire together with the correct cable size/fuses etc sent straight away to you to download as a PDF

Components used in this diagram

• Renogy 240V Inverter 1000W, 2000W or 3000W

• Renogy DC-DC w/MPPT 30A, 50A

• 100AH Lithium Battery(s)

• Solar Panels 100W, 175W or 200W

• Battery Monitor Renogy or Victron

• Fuse Distribution

• Neutral Bar

• Fuse Holder

• Fuses 60A, 80A, 100A, 125A, 200A or 300A

• Solar DC circuit breaker

• DC Isolator Switch

• MC4 Branch Connector 2 Solar Panels, 3 Solar Panels or 4 Solar Panels

If you need a hand to work out what drawing will suit your application best feel free to book a call with our in house Electrician, Landon by clicking here
