The perfect addition to any off-grid system, whether for a van or a cabin, the Renogy 3000W Pure Sine Wave Power Inverter acts as a DC to AC converter that allows you to power your household appliances. Unlike modified sine wave inverters, this 3000W inverter is a pure sine wave, capable of producing cleaner, smoother, and more reliable electricity to operate tools, fans, lights, and other electronics without interference. Many off-grid systems require a 12V solar inverter to power everyday electronics and this one includes multiple protections to help things run smoothly and safely.
The AC priority switch function enables the inverter automatically switch from the battery (DC) to the mains (AC) and vice-vercer whenever the utility company takes/loses power!
With inbuilt Electronic overload protection and automatic shutdown, this Renogy inverter provides peace of mind so your off-grid system is able to run safely. A built-in internal backup DC fuse provides added safety.
Built-in output short circuit protection provides further safety to your solar setup and household appliances.
UPS (AC priority switch) function: Transfers input power between battery supply & AC main within 50ms.
The following are the minimum battery quantities to operate Renogy power inverters. This is ONLY for 12V applications.
BATTERY BANK QTY/ INVERTER SIZE | 50AH | 100AH | 170AH |
---|---|---|---|
1000W | 2 | 1 | 1 |
2000W | 4 | 2 | 2 |
3000W | 6 | 3 | 2 |

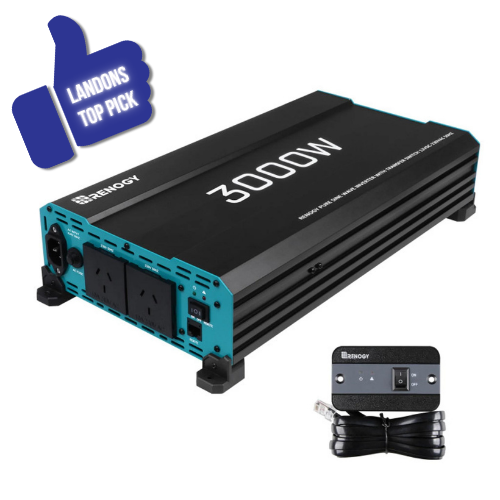

3000W 12V Pure Sine Wave Inverter 1 x
|
Inverter Cables 1 x
|
Inverter Remote Control 1 x
|
Continuous Power (Watts) | 3000W |
Peak Power (Watts) | 6000W |
DC Input Range (Volts) | 11V-16V |
AC Input Range (Volts) |
200V-240V |
AC Output (Volts) |
220V |
Inverter Output Efficiency | 90% |
High Voltage Shutdown | 16.3VDC |
Operating Temperature Range |
0°C to 40°C |

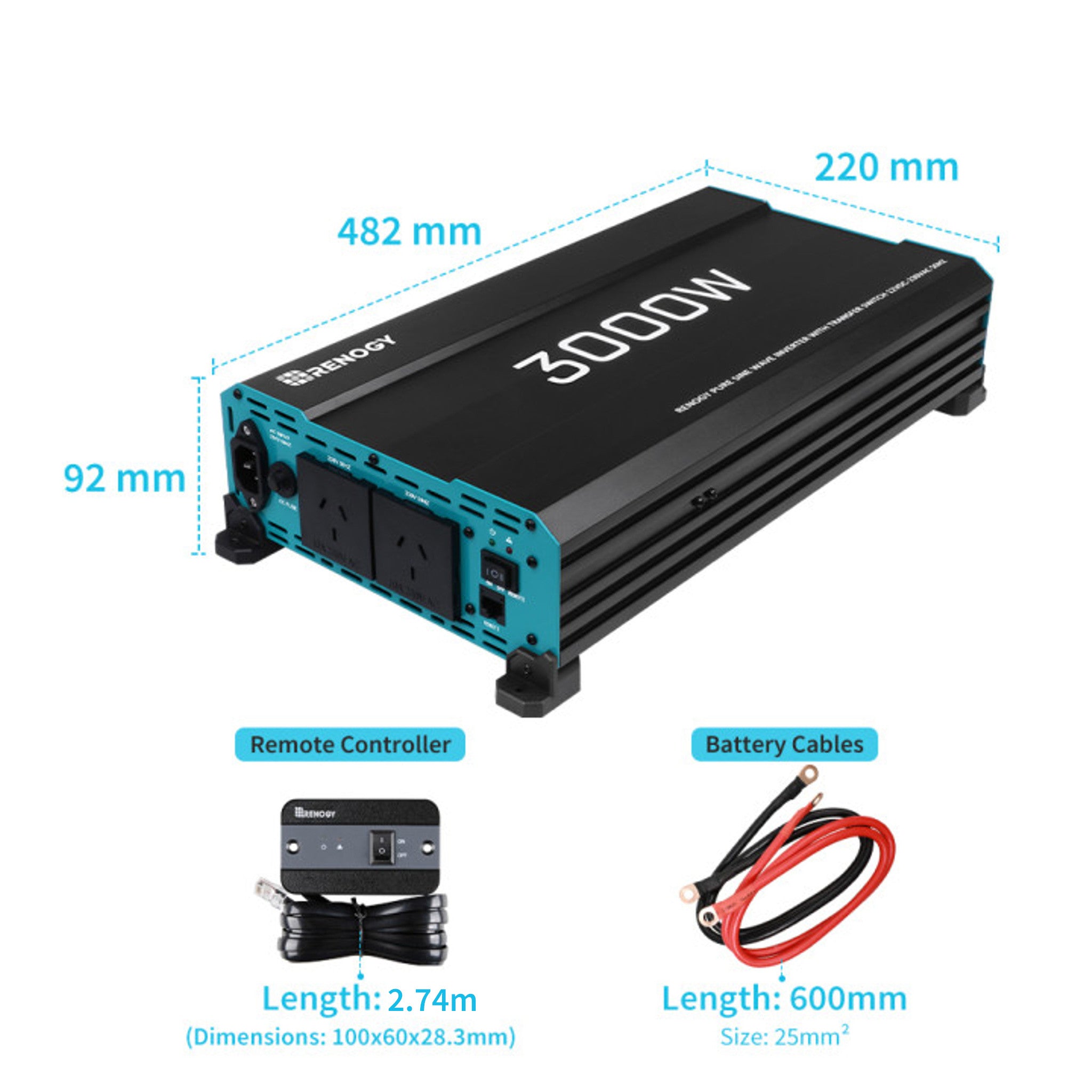

Product Dimensions |
482mm x 220mm x 92mm |
Net Weight | 6.4kg |
Please see more details in the 'Data Sheets' tab.
All items subject to availability and will generally require a 1-3 business day turnaround.
We don't hold the stock on hand but have a trusted supplier who will send this direct from their nearest warehouse to ensure you receive it as soon as possible.
Material and Workmanship Warranty: 1 year warranty
Accessories Warranty: 1 year warranty
Please call us for more details and to discuss your next step.
3000W 12V to 230V Pure Sine Wave Inverter (with UPS Function) Manual
3000W 12V to 230V Pure Sine Wave Inverter (with UPS Function) Warranty
Ordered my new inverter at the 10% off sale. It arrived within a couple of weeks & I have installed it to my 300A/h battery in the caravan. It is working as it should at home however has not seen action in the wild to date but I am confident it will serve me well.
Excellent communication, great price, excellent to deal with quick delivery
It looks like a reasonably robust unit. I have not completed the system set up yet so I don't know how it will perform.
